Product Description
TECHNICAL DESCRIPTION OF INFINITY ROLLING MILL ROLLS
1. Overview

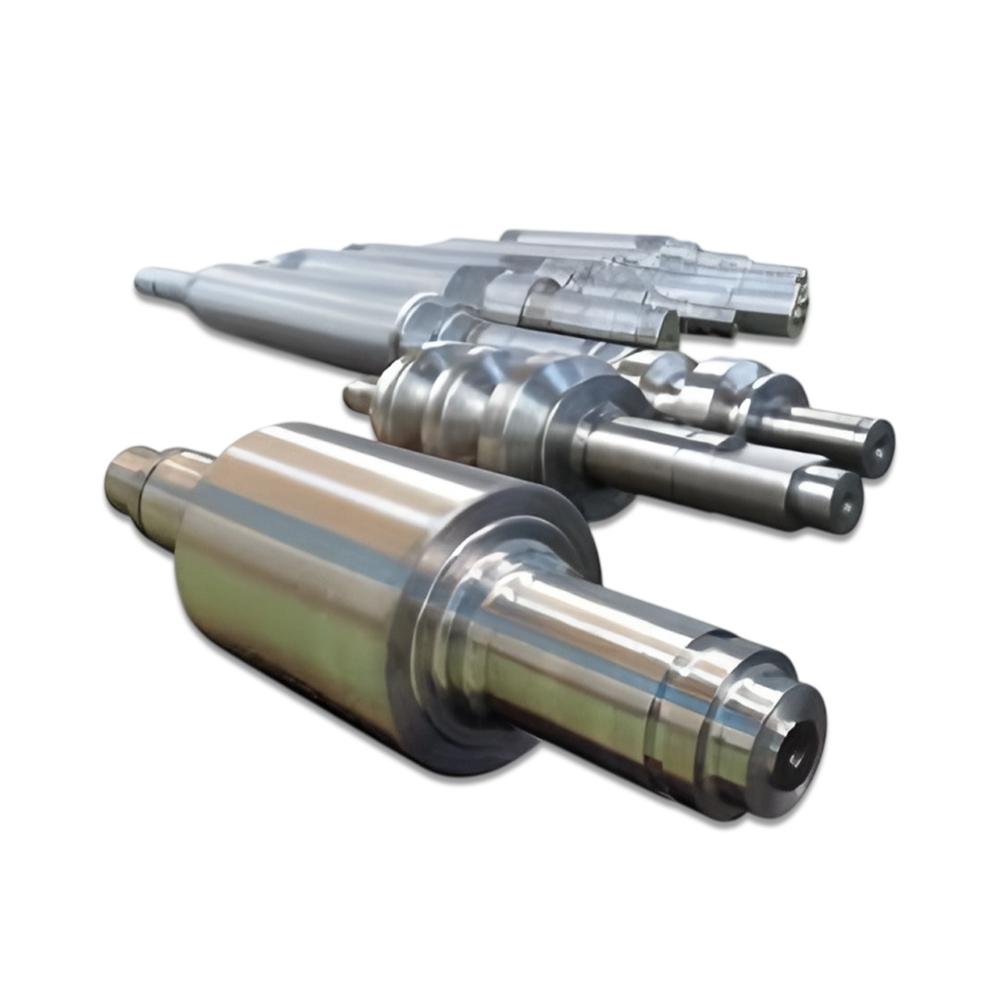

Infinity Rolling Mill Rolls are precision-engineered components designed for high-performance metal deformation processes in modern rolling mills. These rolls are manufactured using advanced metallurgical techniques to ensure superior wear resistance, dimensional accuracy, and extended service life under extreme operating conditions.
2. Product Range
Our rolling mill rolls are suitable for various applications:
- Hot Rolling Mill Rolls
- Cold Rolling Mill Rolls
- TMT Bar Rolling Mill Rolls
- Section Mill Rolls
- Wire Rod Mill Rolls
- Roughing, Intermediate & Finishing Stands Rolls
3. Material Grades
We manufacture rolls in a wide range of grades depending on application:
- Cast Iron Rolls
- Grey Iron Rolls
- Spheroidal Graphite (SG) Iron Rolls
- Alloyed Cast Iron Rolls
- Cast Steel Rolls
- Adamite Steel Rolls
- Alloy Steel Rolls
- Forged Steel Rolls
- Hardened Forged Rolls
- Indefinite Chill (IC) Rolls
- Double Poured (DPIC) Rolls
4. Chemical Composition (Typical Range)
(Customized as per application)
- Carbon (C): 2.8 3.5% (Cast Iron) / 0.4 1.2% (Steel)
- Silicon (Si): 0.5 1.5%
- Manganese (Mn): 0.5 1.2%
- Chromium (Cr): 0.5 5.0%
- Nickel (Ni): 0.5 4.0%
- Molybdenum (Mo): 0.2 1.5%
5. Mechanical Properties
- Hardness Range:
- Roughing Rolls: 4560 HSD
- Intermediate Rolls: 5570 HSD
- Finishing Rolls: 6585 HSD
- High wear resistance
- Excellent thermal fatigue resistance
- Superior crack resistance
- High load-bearing capacity
6. Manufacturing Process
- Controlled casting / forging process
- Heat treatment (annealing, normalizing, quenching & tempering)
- CNC machining for precision finishing
- Dynamic balancing (if required)
- Ultrasonic and non-destructive testing (NDT)
7. Dimensional Specifications
- Roll Diameter: Up to 1200 mm (customizable)
- Barrel Length: As per mill design
- Neck Size & Keyway: As per customer drawings
- Tolerance: As per DIN / ASTM standards or client requirement
8. Surface Finish
- Precision ground surface

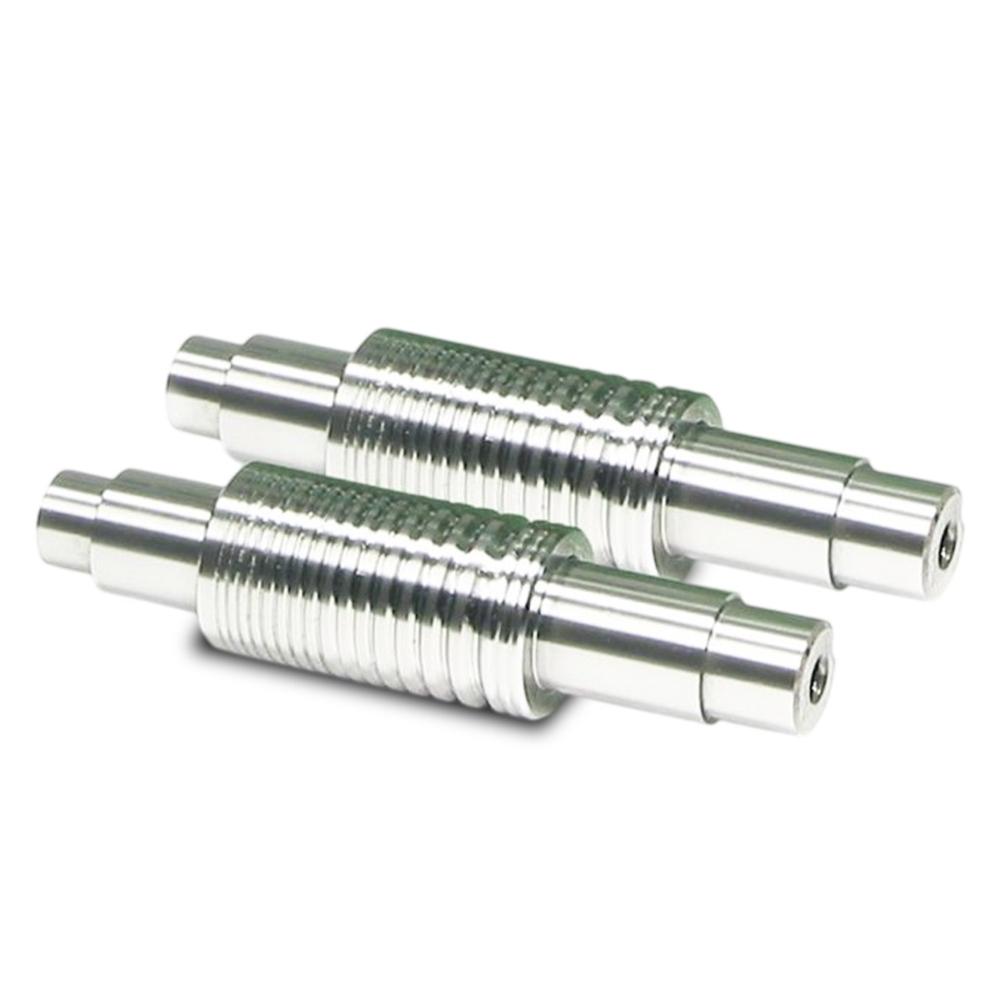

- Groove machining as per pass design
- Surface roughness: Ra 1.6 m (customizable)
9. Applications
- Steel Rolling Mills
- TMT Bar Production Plants
- Structural Steel Mills
- Wire Rod Mills
- Non-Ferrous Metal Rolling
10. Quality Assurance
- Strict adherence to international standards (DIN / ASTM / IS)
- In-house chemical and mechanical testing
- Third-party inspection available (e.g., SGS / BV)
- Complete material traceability
11. Advantages of Infinity Rolls
- Longer campaign life
- Reduced roll consumption
- Improved surface finish of rolled products
- Lower downtime and maintenance cost
- Consistent performance under high temperatures
12. Supply Condition
- Fully machined / semi-finished / rough machined
- With or without grooves
- Ready for installation

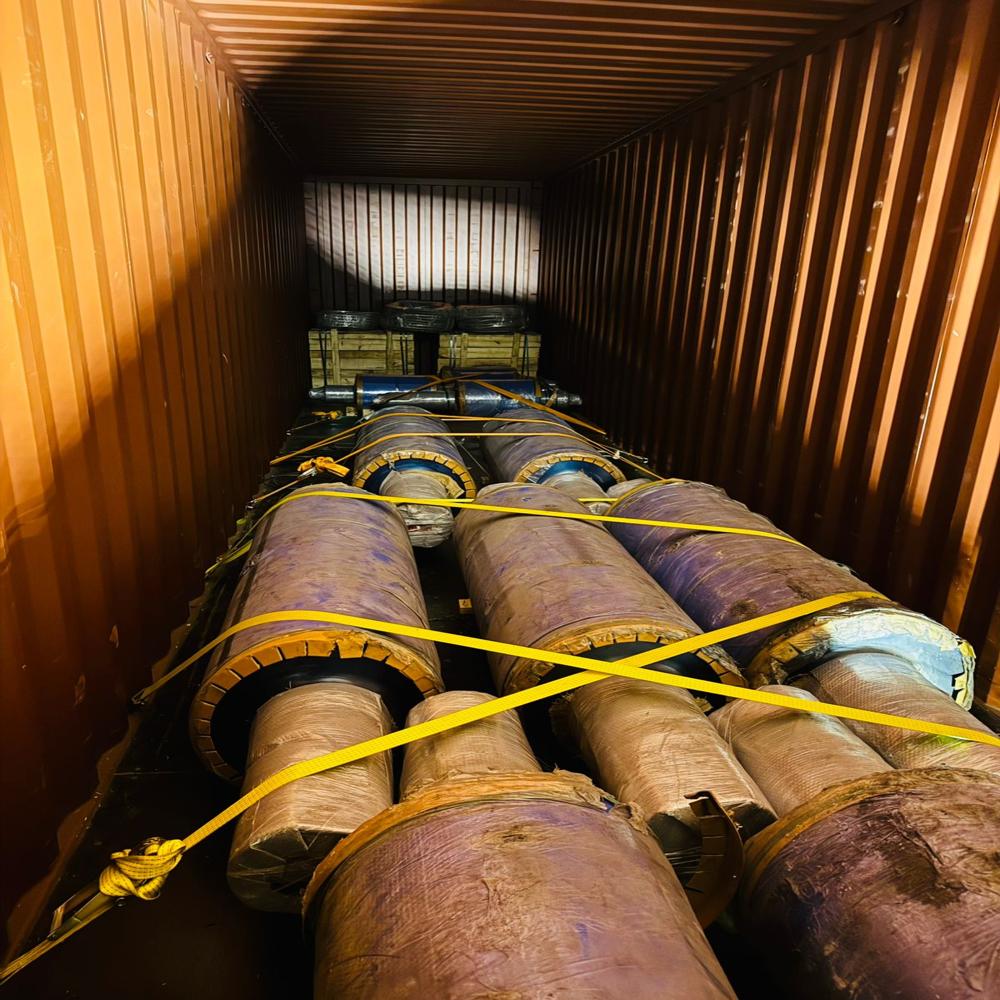

13. Packaging & Dispatch
- Rust preventive coating
- Wooden box / pallet packing
- Export-worthy packaging
Precision Engineering for Efficient Steel Re-RollingTMT Rolling Mill Rolls are engineered to maximize efficiency and product quality in steel re-rolling operations. Each roll is carefully manufactured from alloy steel, undergoing precision processes such as centrifugal casting or forging. The polished surface and customizable design meet the rigorous demands of hot rolling applications, ensuring reliable performance and minimal downtime in the mill.
Superior Durability and Extended Life CycleWith roll hardness ratings between 45-55 HRC and high wear resistance, these mill rolls are built for durability. Whether used for TMT bars, rods, or structural sections, they offer a long service life that translates into cost savings and consistent output. Their robust construction ensures they withstand intense operational conditions, making them a preferred choice for heavy-duty steel manufacturing environments.
FAQ's of TMT Rolling Mill Rolls:
Q: How are TMT Rolling Mill Rolls used in steel re-rolling mills?
A: TMT Rolling Mill Rolls are used in hot rolling mills to shape and process steel into TMT bars, rods, and structural sections. They function within semi-automatic, PLC-controlled systems, providing the required compression and forming for high-quality steel products.
Q: What is the manufacturing process of these mill rolls?
A: The mill rolls are produced using advanced centrifugal casting or forging techniques. This ensures a uniform material structure and superior strength, followed by precision machining and polishing to achieve the desired surface finish and shape.
Q: When should TMT Rolling Mill Rolls be replaced?
A: Rolls should be replaced when signs of significant wear, surface damage, or reduced performance are observed, usually after extensive operation cycles. Regular inspection and maintenance extend their lifespan, but replacement is necessary to maintain optimal rolling quality.
Q: Where can these rolls be applied within a rolling mill?
A: They are installed across all sections of a hot rolling mill involved in shaping TMT bars, rods, and structural steel products. Their customizable diameter allows them to fit various mill stands and configurations as per production requirements.
Q: What are the benefits of using alloy steel TMT Rolling Mill Rolls?
A: Alloy steel construction provides exceptional wear resistance, high hardness, and a long service life. These features minimize maintenance needs and operational downtime, ensuring consistent product quality and efficient production.
Q: How does computerized PLC control enhance the use of these mill rolls?
A: The integrated PLC control system automates roll operations, allowing precise adjustments, monitoring, and safer handling. This leads to improved productivity, uniform product quality, and efficient troubleshooting during the rolling process.
Q: What industries or users benefit most from these TMT Rolling Mill Rolls?
A: Steel manufacturers, exporters, suppliers, and traders in the steel industry benefit greatly. The rolls are particularly suited for high-capacity production units requiring reliable, long-lasting rolling components for manufacturing TMT bars and structural elements.
