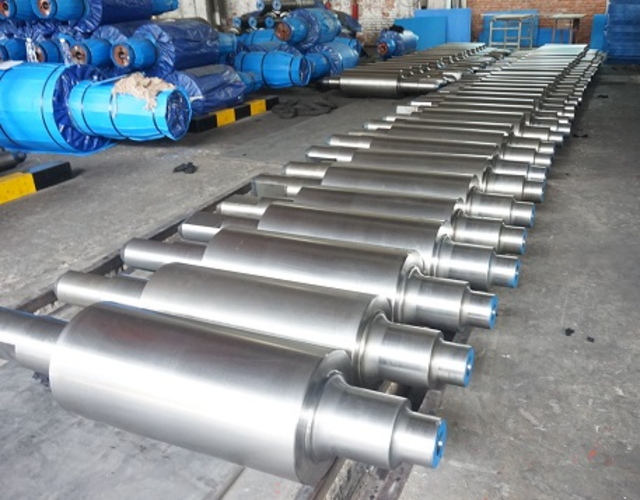

Rolling Mill Rolls

Hot Rolling Mill Rolls Technical Specifications
1. Application & Working Conditions

• Used for rolling billets, slabs, blooms, bars, and sections

• Operating temperature: 700C 1200C

• Subjected to:

• Heavy rolling load (compression + bending)

• Thermal shock (heating & cooling cycles)

• Wear, oxidation, and impact

2. Types of Hot Rolling Mill Rolls

---

3. Material Specifications
Common Materials Used

• Alloy Cast Steel (e.g., 55Cr, 60CrMnMo)

• High Chromium Cast Iron

• Adamite Steel

• Indefinite Chill Cast Iron (ICDP)

• High-Speed Steel (HSS)

Hot rolls require high strength & toughness rather than very high hardness

---

Typical Chemical Composition (HSS Rolls Example)

---

4. Mechanical Properties

---

5. Key Performance Requirements

• High thermal crack resistance

• Excellent wear resistance

• High oxidation resistance

• Good heat conductivity

• High fatigue strength (backup rolls)

Rolls must withstand thermal cycling + heavy loads simultaneously

---

6. Dimensional Specifications

---

7. Roll Construction
Solid Rolls

• Entire roll made from one material

• Used in smaller mills

Composite Rolls (Modern Standard)

• Outer layer: Wear-resistant (HSS / Hi-Cr)

• Core: Tough material (ductile iron / forged steel)

Working layer thickness: 30 80 mm

---

8. Surface & Design Features

• Grooved profiles (for TMT, sections, rails)

• Crown design for load compensation

• Surface roughness:

• Roughing: coarse

• Finishing: smoother

---

9. Heat Treatment

• Normalizing / Quenching & Tempering

• Induction hardening (in some cases)

• Aimed at:

• Uniform hardness

• Carbide formation (HSS rolls)

---

10. Typical Roll Material Selection by Stand

---

11. Key Advantages of Modern Rolls (HSS)

• 3 longer life vs conventional rolls

• Better surface finish

• Reduced roll consumption

• Higher production efficiency

---

12. Important Selection Factors

• Mill type (TMT / strip / section)

• Rolling temperature

• Reduction ratio

• Product quality requirement

• Cooling conditions
