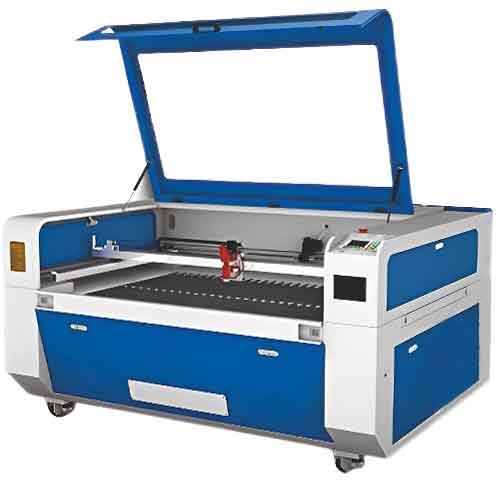

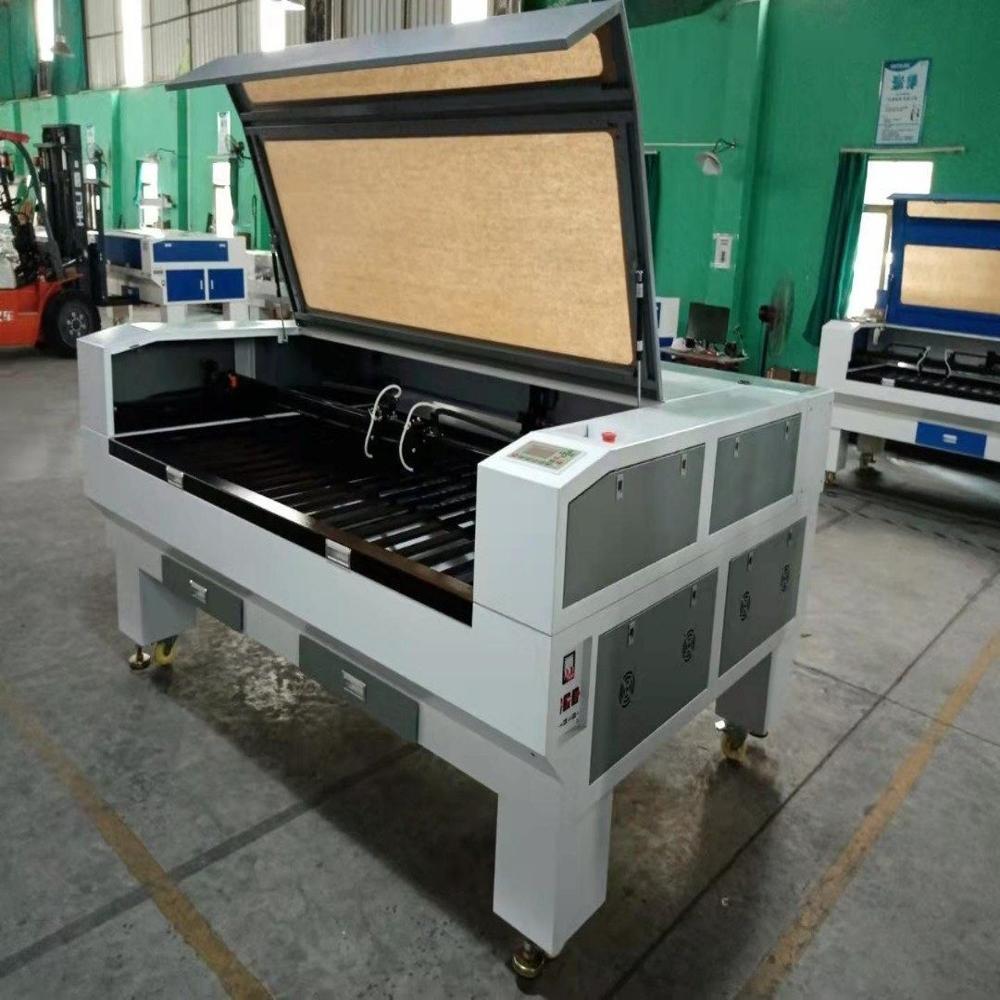

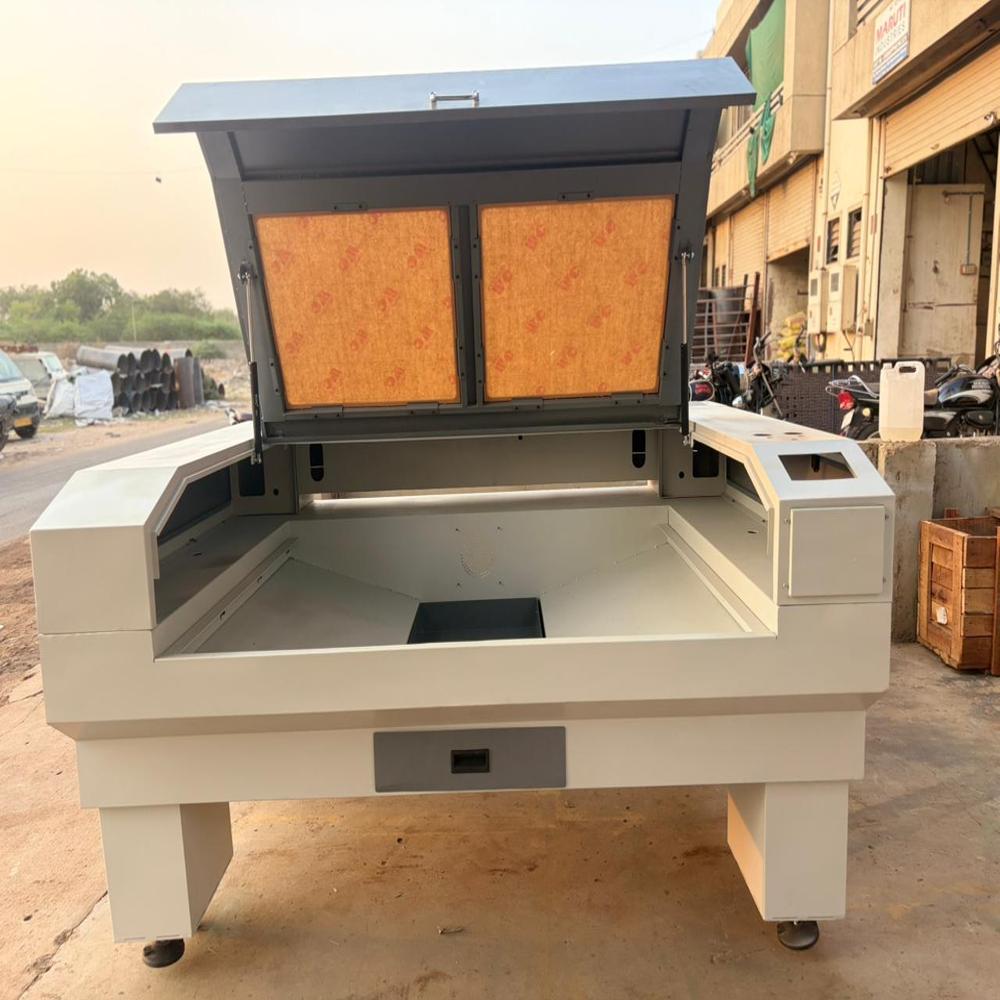

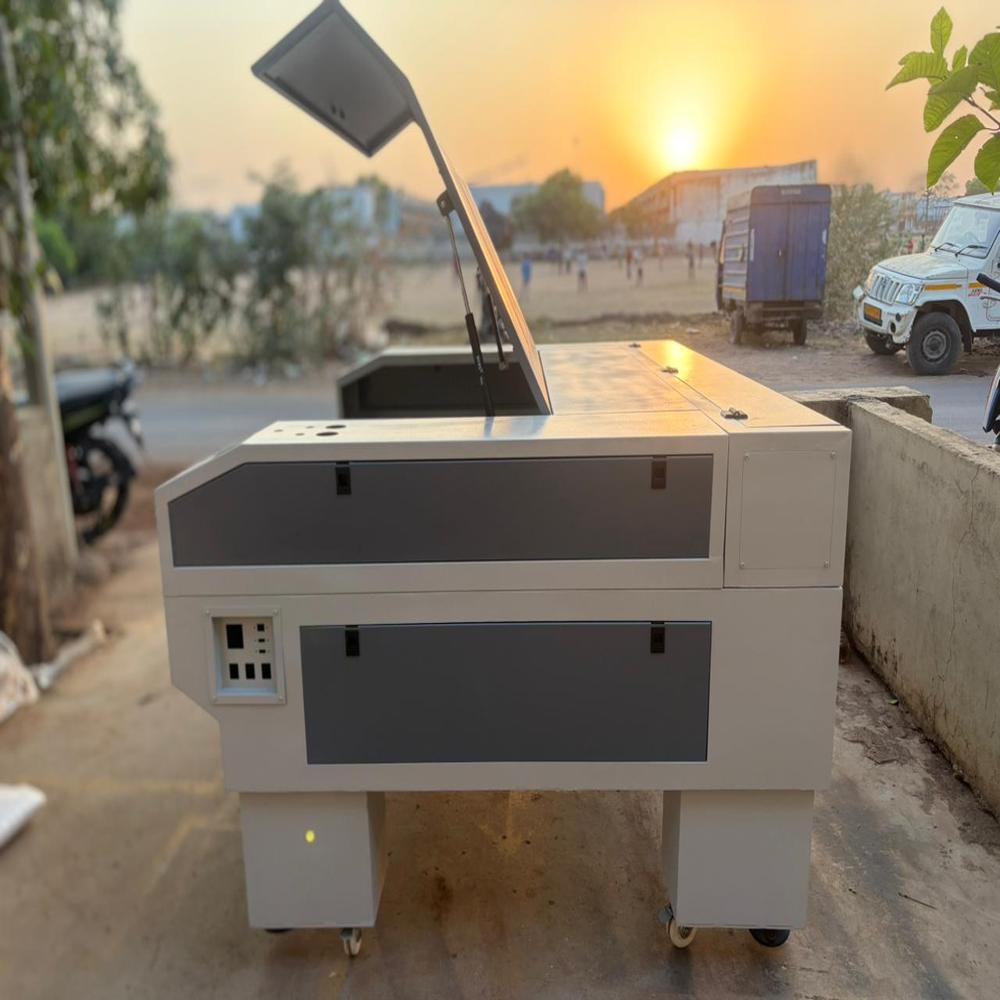

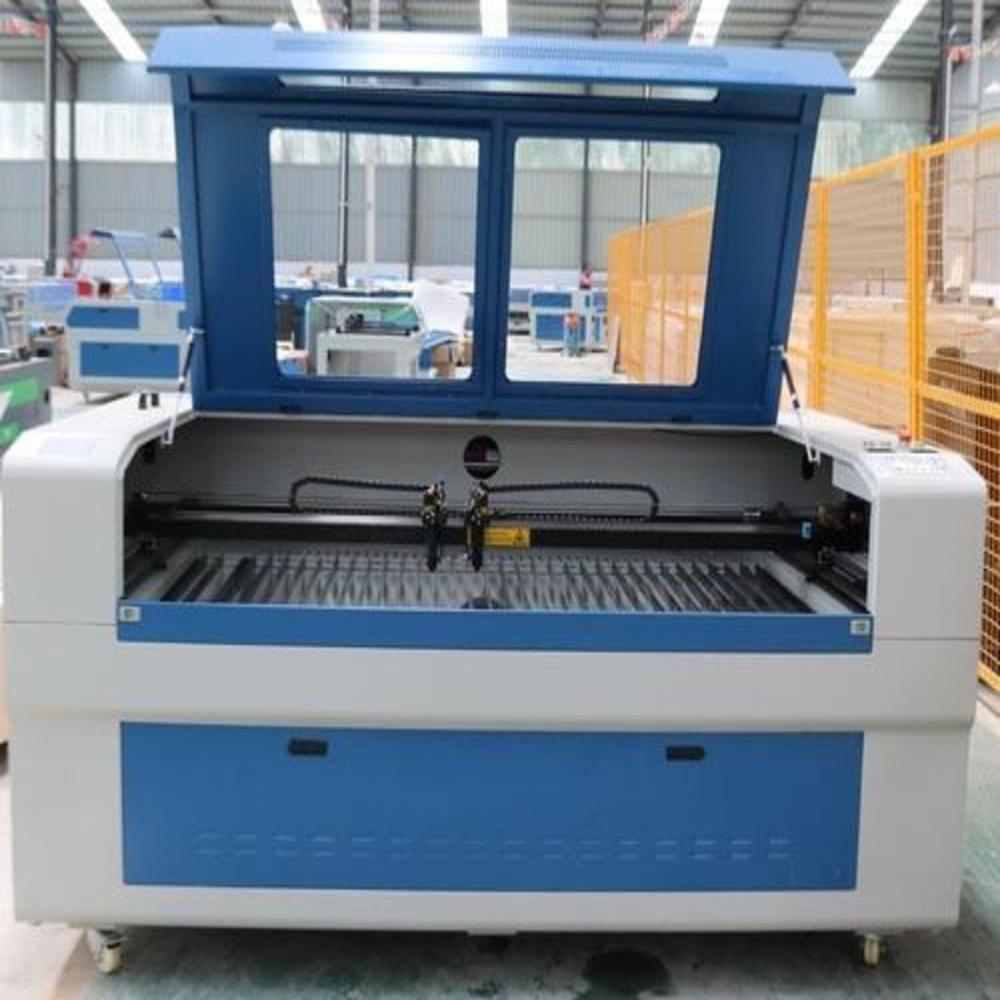

Non-Metal Laser Cutting Machine

Product Description

A CO Laser Cutting Machine is a precision-based, non-contact cutting and engraving system that uses a high-powered carbon dioxide laser beam to cut, engrave, and mark various non-metal and selected coated metal materials. It is widely used in industries such as advertising, packaging, textile, leather, woodworking, and signage.

Working Principle

The machine operates by generating a laser beam inside a CO laser tube filled with gas mixture (CO, nitrogen, helium).

• The laser beam is directed through mirrors and focused using a lens.
• A high-intensity focused beam melts, burns, or vaporizes the material.
• A motion control system (CNC-based) guides the laser head along the programmed path for accurate cutting or engraving.

Key Components

• CO Laser Tube Generates laser beam (typically 40W to 150W or higher)
• Laser Power Supply Provides high voltage to excite gas molecules
• Optical System Mirrors and focusing lens for beam direction
• Motion Control System Stepper/Servo motors with guide rails
• Control Panel / Software CAD/CAM-based control (RDWorks, CorelDRAW, AutoCAD compatible)
• Cooling System Water chiller for maintaining tube temperature
• Exhaust System Removes fumes and smoke
• Work Table Honeycomb or blade type depending on application

Technical Specifications (Typical)

• Laser Power: 60W / 80W / 100W / 130W / 150W
• Working Area: 600400 mm to 13002500 mm (customizable)
• Cutting Speed: 0300 mm/s (depending on material)
• Engraving Speed: Up to 500 mm/s
• Positioning Accuracy: 0.01 mm
• Minimum Character Size: 11 mm
• Cooling Method: Water cooling (industrial chiller recommended)
• Power Supply: AC 220V / 50 Hz
• Supported Formats: AI, DXF, PLT, BMP, JPG

Materials Suitable for Processing

Cutting & Engraving:

• Acrylic (PMMA)
• Wood / MDF / Plywood
• Leather / Fabric / Rubber
• Paper / Cardboard
• Plastic (non-PVC)

Engraving Only:

• Glass
• Ceramic
• Anodized Aluminum
• Coated metals

Applications

• Signage & Advertising Boards
• Packaging Prototyping
• Textile & Garment Cutting
• Leather Goods Manufacturing
• Wooden Craft & Furniture Design
• Acrylic Fabrication

Advantages

• High precision and clean edge finish
• Non-contact process (no tool wear)
• Minimal material wastage
• High repeatability and automation
• Ability to perform intricate designs

Limitations

• Not suitable for thick metals (unless specialized systems)
• Cannot cut PVC (produces toxic fumes)
• Requires proper ventilation and cooling

Optional Features

• CCD Camera for contour cutting
• Rotary attachment for cylindrical objects
• Autofocus laser head
• Servo motor upgrade for high speed
