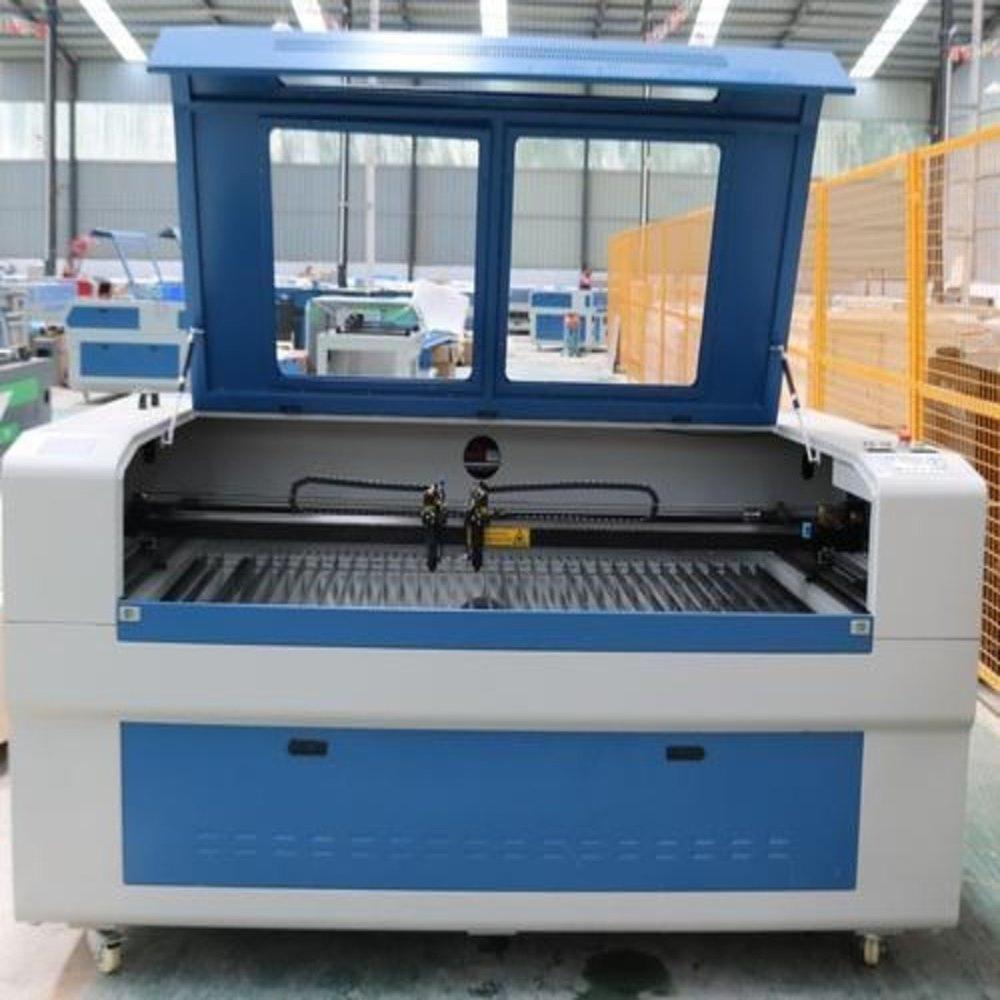

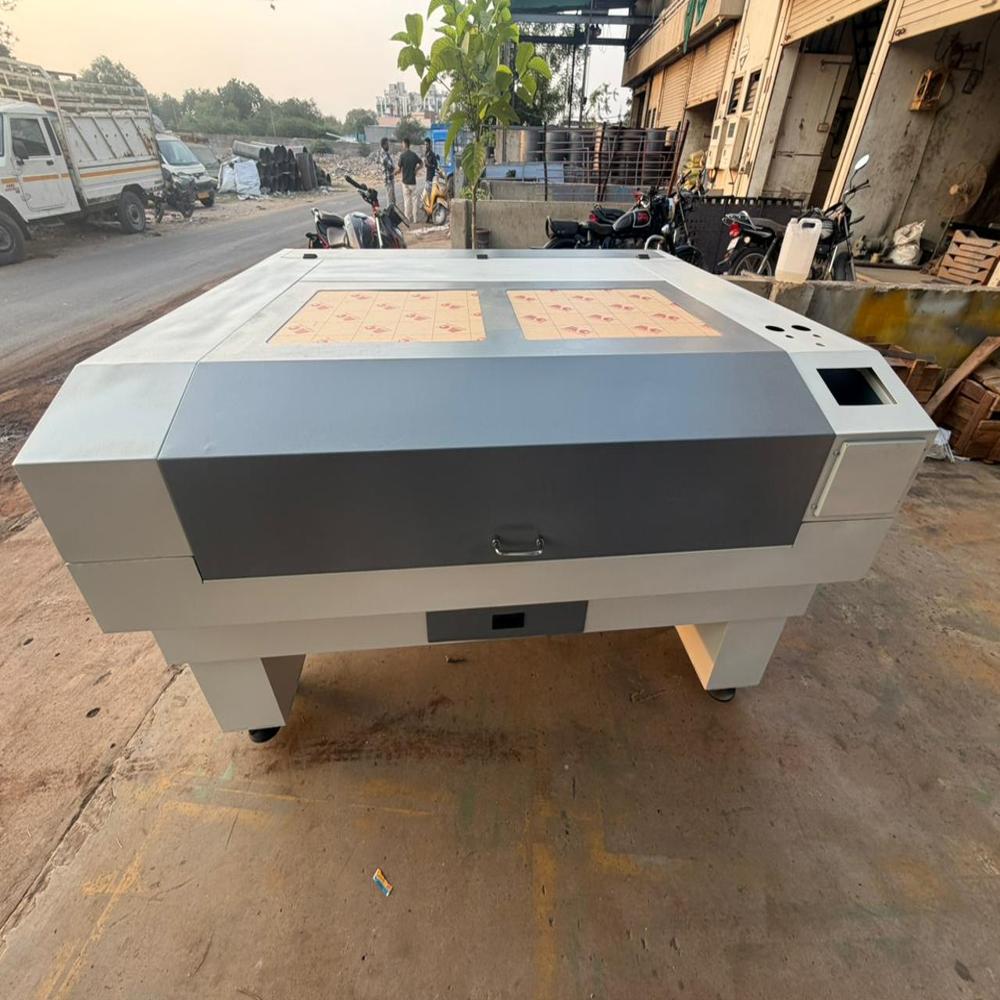

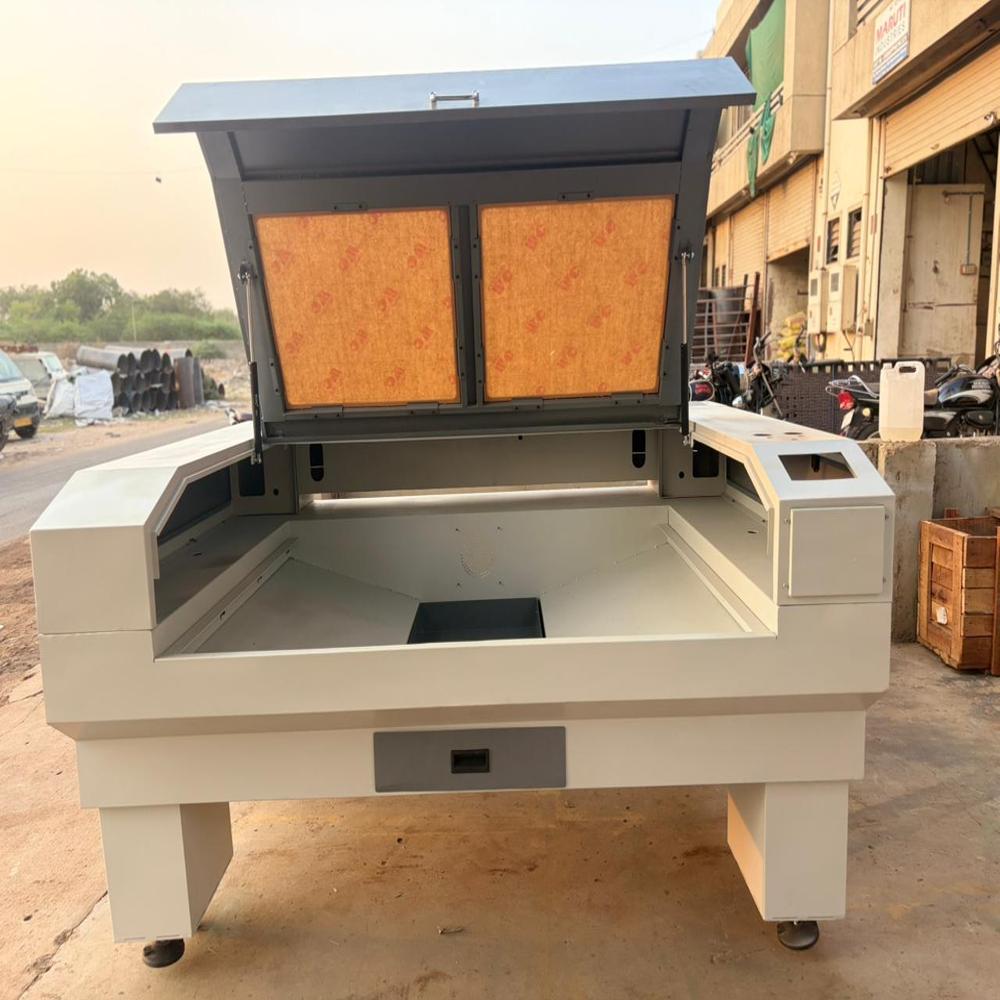

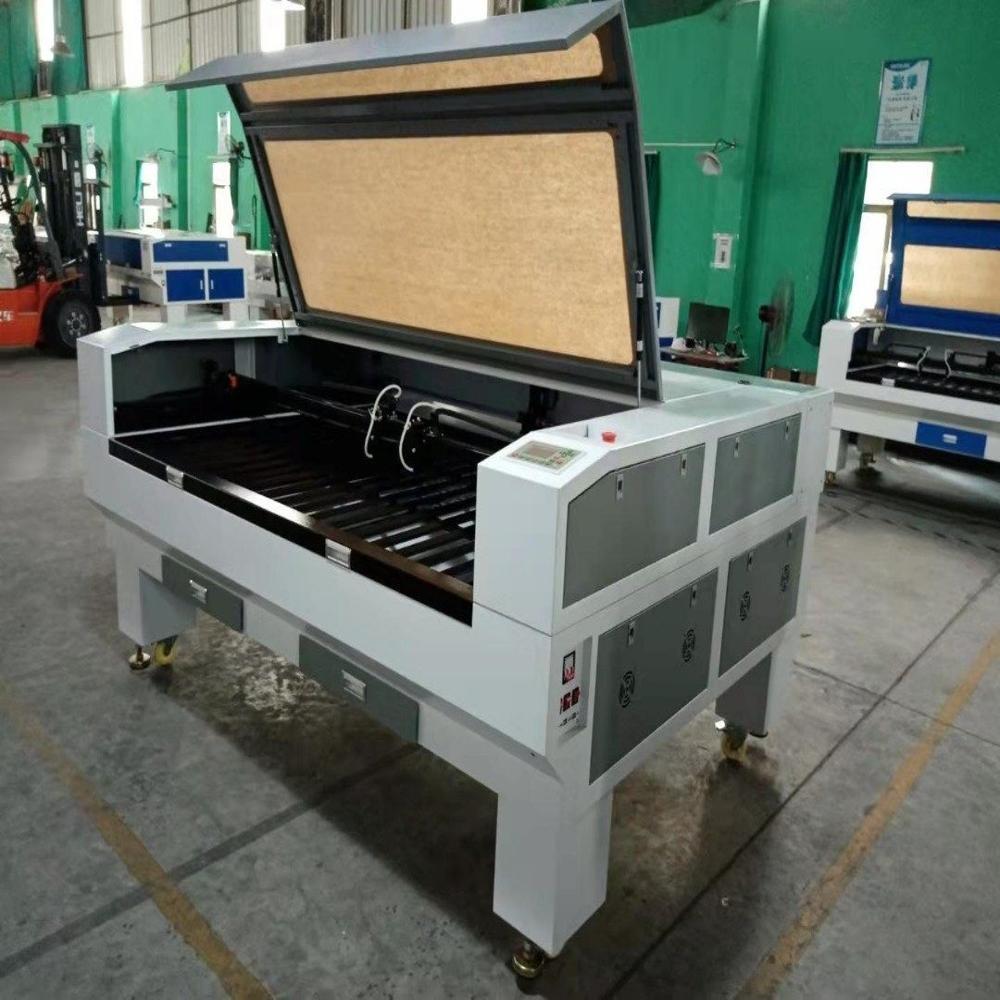

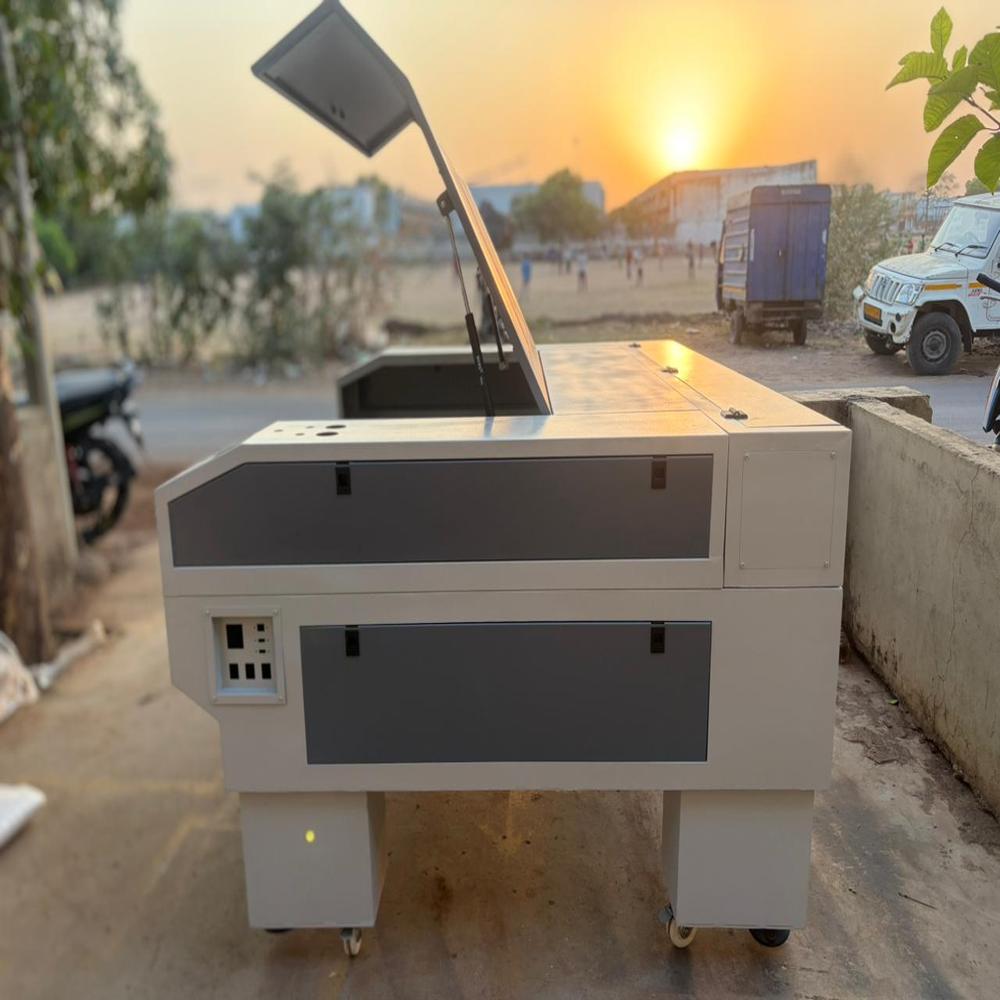

Industrial CO2 Laser Machine

Product Description

A CO Laser Cutting Machine is a precision-based, non-contact cutting and engraving system that uses a high-powered carbon dioxide laser beam to cut, engrave, and mark various non-metal and selected coated metal materials. It is widely used in industries such as advertising, packaging, textile, leather, woodworking, and signage.

---

Working Principle

The machine operates by generating a laser beam inside a CO laser tube filled with gas mixture (CO, nitrogen, helium).

• The laser beam is directed through mirrors and focused using a lens.
• A high-intensity focused beam melts, burns, or vaporizes the material.
• A motion control system (CNC-based) guides the laser head along the programmed path for accurate cutting or engraving.

---

Key Components

• CO Laser Tube Generates laser beam (typically 40W to 150W or higher)
• Laser Power Supply Provides high voltage to excite gas molecules
• Optical System Mirrors and focusing lens for beam direction
• Motion Control System Stepper/Servo motors with guide rails
• Control Panel / Software CAD/CAM-based control (RDWorks, CorelDRAW, AutoCAD compatible)
• Cooling System Water chiller for maintaining tube temperature
• Exhaust System Removes fumes and smoke
• Work Table Honeycomb or blade type depending on application

---

Technical Specifications (Typical)

• Laser Power: 60W / 80W / 100W / 130W / 150W
• Working Area: 600400 mm to 13002500 mm (customizable)
• Cutting Speed: 0300 mm/s (depending on material)
• Engraving Speed: Up to 500 mm/s
• Positioning Accuracy: 0.01 mm
• Minimum Character Size: 11 mm
• Cooling Method: Water cooling (industrial chiller recommended)
• Power Supply: AC 220V / 50 Hz
• Supported Formats: AI, DXF, PLT, BMP, JPG

---

Materials Suitable for Processing

Cutting & Engraving:

• Acrylic (PMMA)
• Wood / MDF / Plywood
• Leather / Fabric / Rubber
• Paper / Cardboard
• Plastic (non-PVC)

Engraving Only:

• Glass
• Ceramic
• Anodized Aluminum
• Coated metals

---

Applications

• Signage & Advertising Boards
• Packaging Prototyping
• Textile & Garment Cutting
• Leather Goods Manufacturing
• Wooden Craft & Furniture Design
• Acrylic Fabrication

---

Advantages

• High precision and clean edge finish
• Non-contact process (no tool wear)
• Minimal material wastage
• High repeatability and automation
• Ability to perform intricate designs

---

Limitations

• Not suitable for thick metals (unless specialized systems)
• Cannot cut PVC (produces toxic fumes)
• Requires proper ventilation and cooling

---

Optional Features

• CCD Camera for contour cutting
• Rotary attachment for cylindrical objects
• Autofocus laser head
• Servo motor upgrade for high speed

Advanced Automation for Increased Productivity

Featuring a fully automatic design with PLC (Programmable Logic Controller) control, this CO2 laser machine streamlines production processes, minimizing manual intervention and maximizing throughput. The computerized interface ensures precise operation and rapid switching between different cutting or engraving tasks, enhancing efficiency in industrial environments.


Reliable Performance and Robust Build

Crafted from high-quality metal, the machine's sturdy body and 250 kg weight provide excellent stability during operation. With a 130-watt output and 220-volt power supply, it's engineered for consistent, powerful performance, ideal for high-volume manufacturing settings where reliability is paramount.
