Co2 Laser Tube 100w

Co2 Laser Tube 100w

282 USD ($)/Unit
Get a Price/Quote

Product Details:

  • Feature Good Quality
  • Usage Industrial
  • Condition New
  • Type Laser Tub
  • Product Type Laser Tub
  • Size Standard
  • Color White
  • Click to View more
Request to Call Back Send Inquiry
X

Co2 Laser Tube 100w Price And Quantity

  • 01 Unit
  • 282 USD ($)/Unit

Co2 Laser Tube 100w Product Specifications

  • 1 year
  • Laser Tub
  • Good Quality
  • Laser Tub
  • White
  • New
  • Industrial
  • Standard

Co2 Laser Tube 100w Trade Information

  • 500 Unit Per Month
  • 5-10 Days

Product Description

CO Laser Tube 100W


Laser Medium Sealed CO gas mixture


Wavelength 106 m


Output Power 100W rated


Peak Power 110120W max


Beam Mode TEM00 TEM01 depends on brand quality


Cooling Method Water cooling circulating chiller recommended


Ignition Voltage 2225 kV DC


Operating Voltage 1820 kV DC


Operating Current 2528 mA


Tube Length 1450 mm 10 mm


Tube Diameter 80 mm


Service Life 5000 8000 hours with proper cooling maintenance


Cooling Water Temperature 15C 25C


Do you also want me to make a 1page datasheet style PDF for this 100W CO tube so you can directly share with customers



You said






co2 laser tube 100w LONG Specification


ChatGPT said






Got it

Heres a detailed long specification for a 100W CO Laser Tube that you can use for technical datasheets or client communication


CO Laser Tube 100W Detailed Specification

General Parameters

Laser Type Sealed glass CO laser tube continuous wave


Active Medium CO N He gas mixture


Wavelength 106 m infrared


Beam Output Power Rated 100W


Maximum Peak Power 110120W


Beam Quality M 12 15 good for cutting engraving


Beam Mode TEM00 TEM01 depends on model


Polarization Linear standard


Electrical Parameters

Ignition Voltage 22 25 kV DC


Operating Voltage 18 20 kV DC


Operating Current 25 28 mA


Power Stability 5 under constant conditions


Triggering Method Highvoltage DC power supply


Mechanical Parameters

Tube Length 1450 mm 10 mm


Tube Diameter 80 mm 2 mm


Output Mirror Diameter 20 mm goldplated ZnSe window


Resonator Design Sealed glass tube with total reflection mirror output coupler


Beam Diameter at Output 30 50 mm


Beam Divergence 25 mrad


Cooling Requirements

Cooling Method Water circulation chiller recommended


Cooling Water Flow Rate 2 Lmin


Water Temperature Range 15C 25C optimal 1820C


Water Quality Clean distilleddeionized water no impurities no air bubbles


InletOutlet Connector Size 8 mm typical silicone tube


Service Life Environmental

Service Life 5000 8000 hours depends on duty cycle cooling


Working Humidity 85 RH noncondensing


Operating Environment Clean dustfree vibrationfree area


Ambient Temperature 10C 35C


Performance Applications

Cutting Acrylic MDF plywood leather fabric plastics paper thin wood etc


Engraving Glass rubber ceramics surface marking coated metals with marking spraypaste


Recommended Machine Size Medium to largeformat CO laser cuttingengraving machines




Robust Industrial Solution

Engineered for rigorous industrial use, the CO2 Laser Tube 100W delivers consistent power output and longevity. Its standardized dimensions ensure compatibility with most laser machines in the manufacturing and processing industries across India.


Reliability With Warranty

This laser tube is backed by a one-year warranty, giving buyers assurance in its quality and performance. The warranty covers manufacturing defects, ensuring reliable operation and support for business continuity.

FAQs of Co2 Laser Tube 100w:


Q: How is the CO2 Laser Tube 100W installed in industrial machinery?

A: The CO2 Laser Tube 100W fits into standard laser machine mounts and can be connected by following the manufacturers installation guidelines. It is recommended to employ a qualified technician to ensure safe and accurate setup.

Q: What are the primary uses of the 100W CO2 Laser Tube in industry?

A: This laser tube is primarily used for cutting, engraving, and marking a range of materials such as acrylic, wood, plastics, and textiles in diverse industrial applications.

Q: When should the CO2 Laser Tube be replaced or maintained?

A: Replacement or maintenance is usually needed if there is a noticeable reduction in output power or beam quality. Routine checks and cleaning can help prolong its lifespan and sustain its efficiency.

Q: Where can I source the CO2 Laser Tube 100W in India?

A: You can obtain this laser tube from reputable suppliers and traders specializing in industrial equipment across India. It is advisable to check for authorized dealers to ensure product authenticity and warranty coverage.

Q: What is the process for claiming the 1-year warranty on this tube?

A: To claim the one-year warranty, contact your supplier or trader with proof of purchase and details of the issue encountered. They will guide you through the process, which may include inspection, repair, or replacement depending on the nature of the problem.

Q: How does using a good-quality laser tube benefit my operations?

A: Utilizing a high-quality laser tube reduces downtime, increases production accuracy, and minimizes the risk of unexpected failures, all of which contribute to smoother operations and greater cost-effectiveness.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Co2 Laser Machine' category

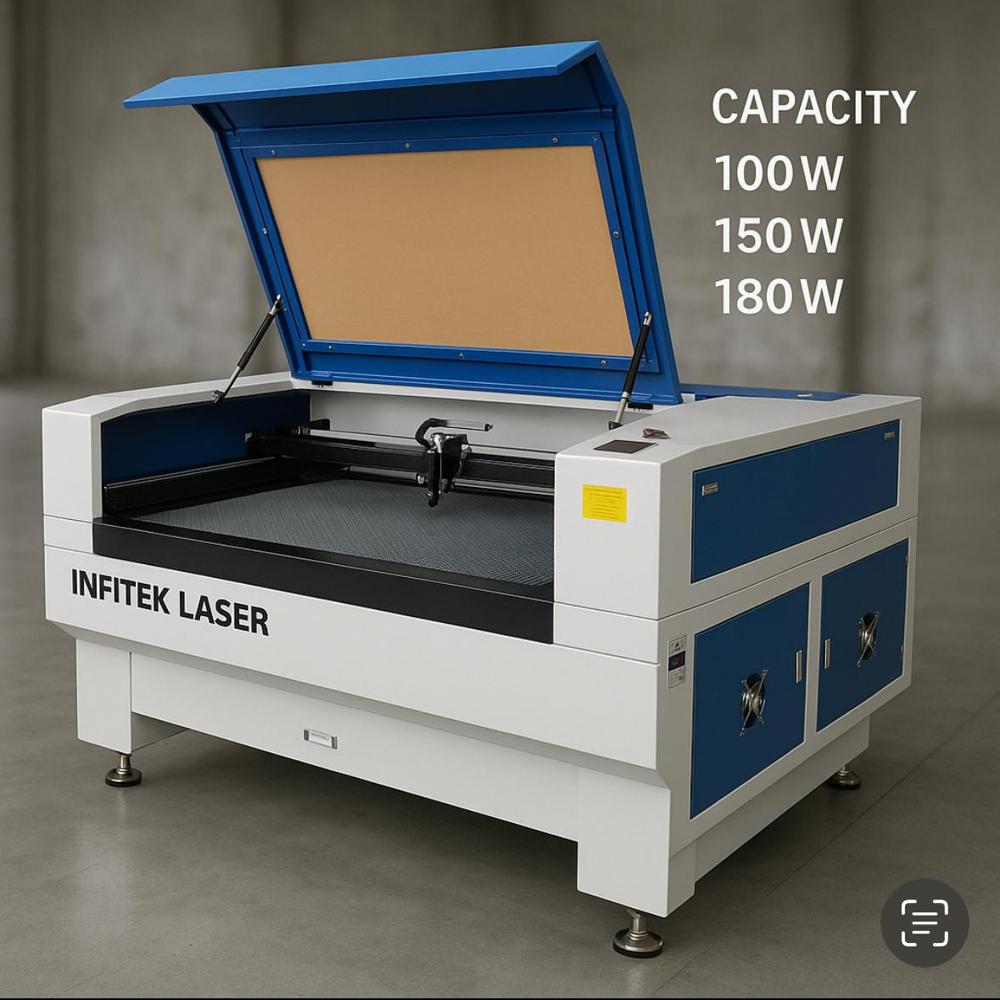

CO2 Laser Engraving And Cutting Machine
