CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine

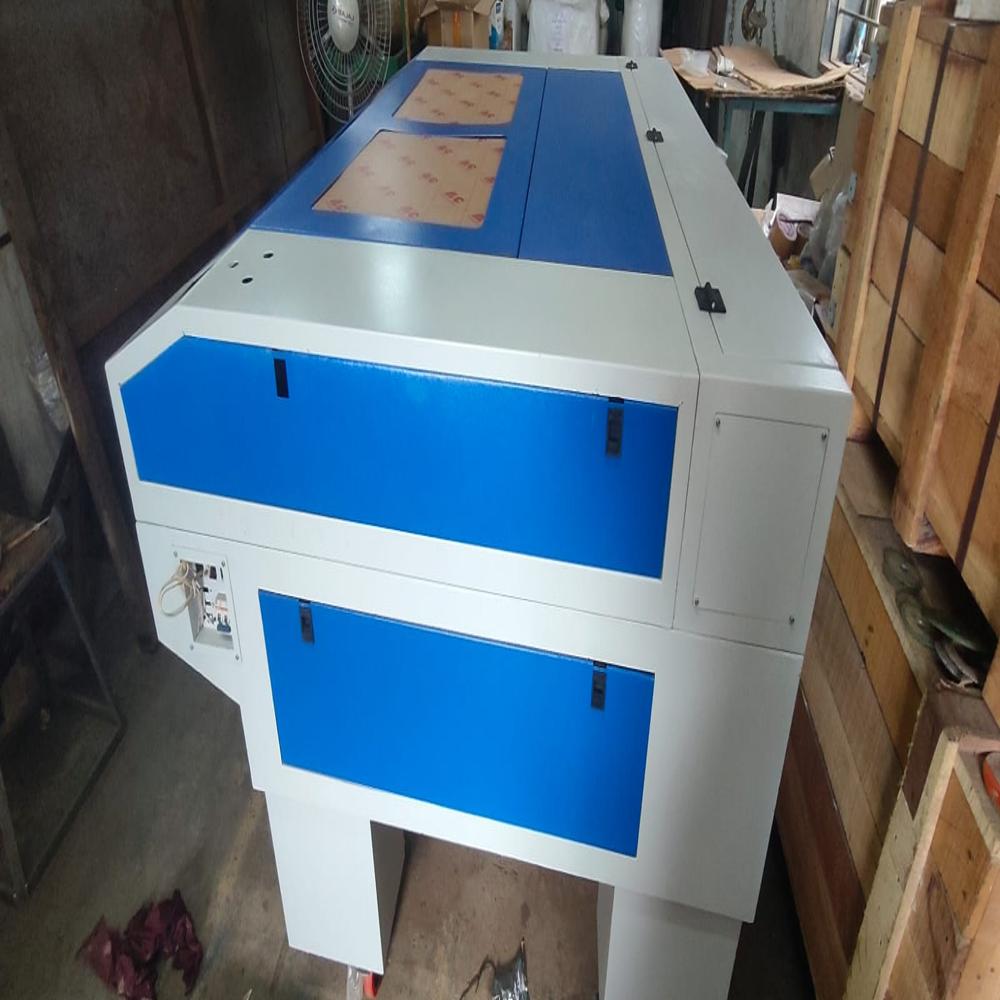

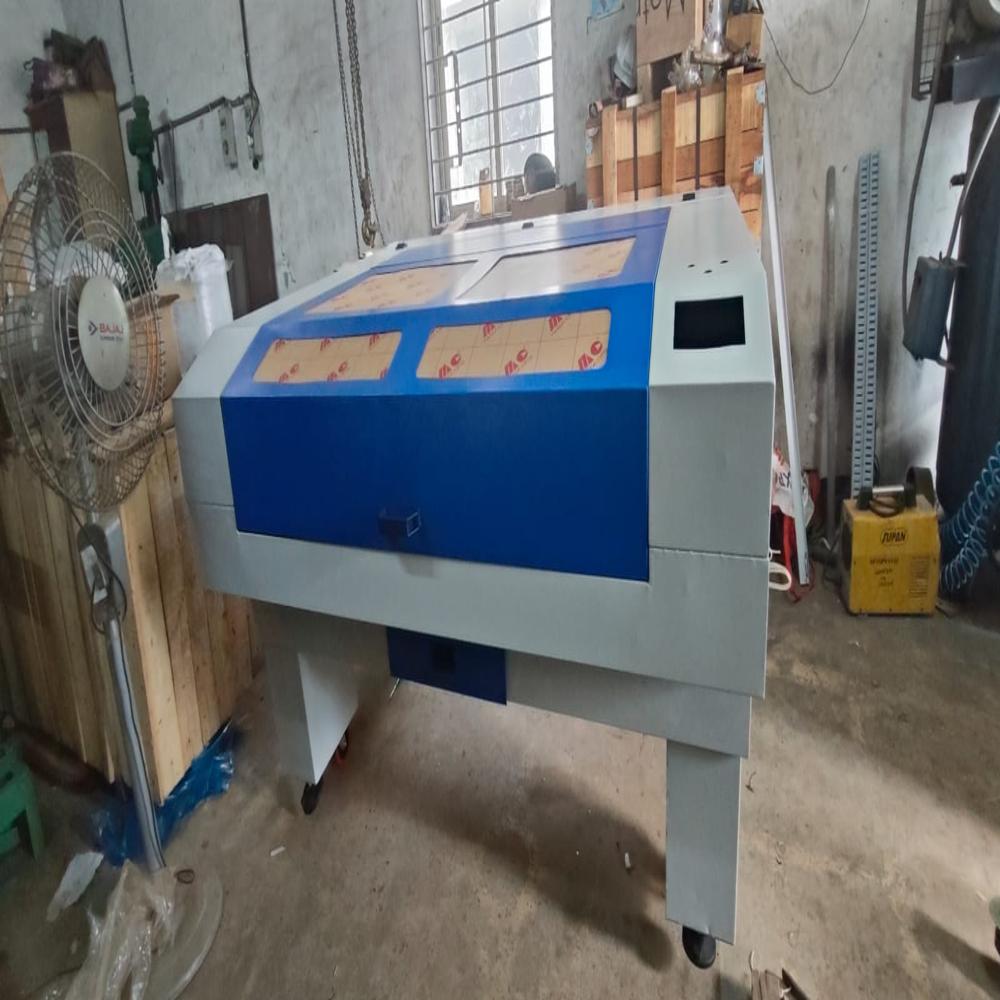

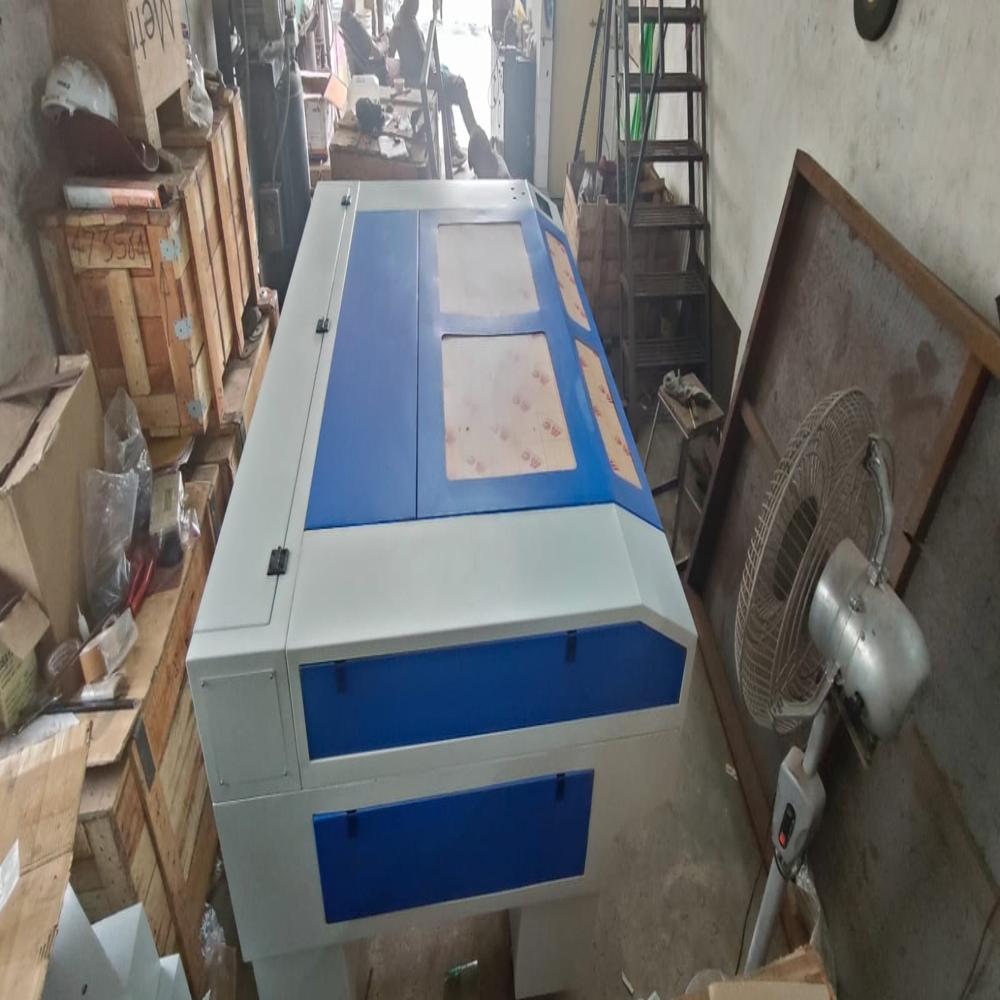

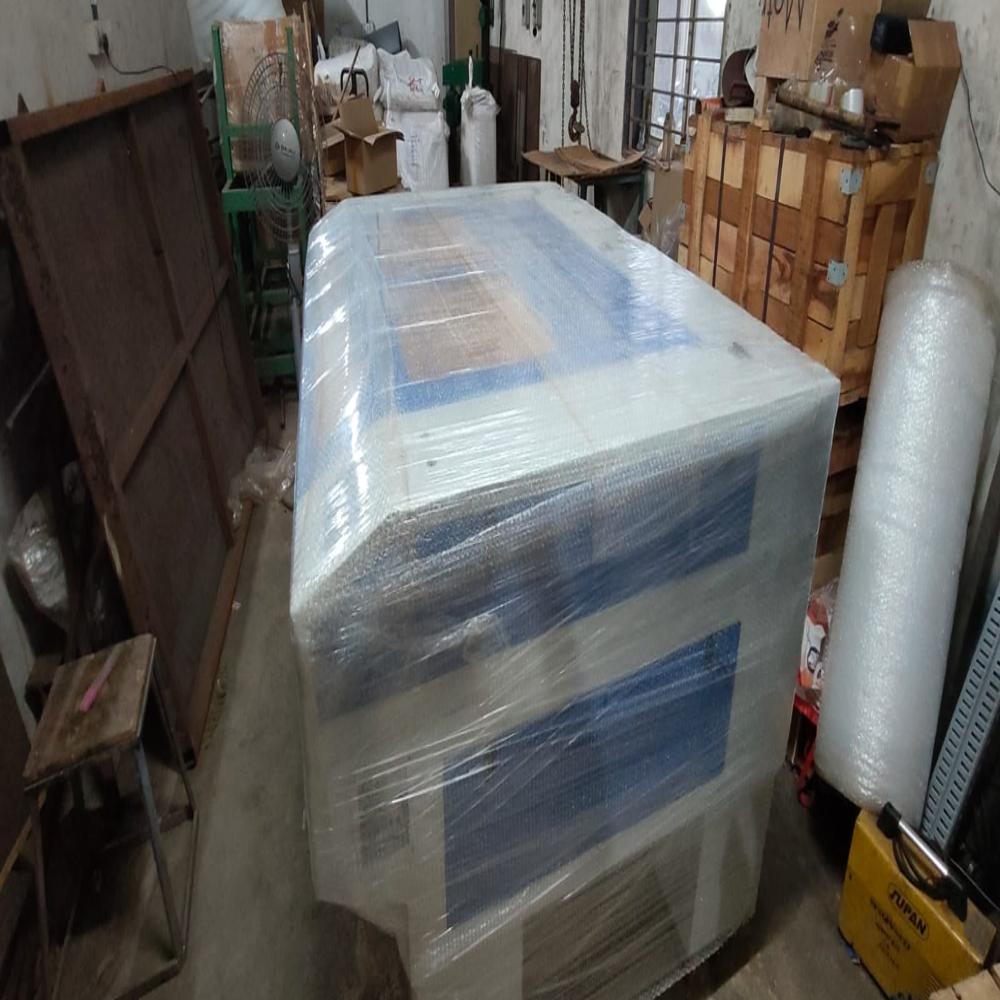

CO2 Laser Engraving And Cutting Machine
CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine CO2 Laser Engraving And Cutting Machine

CO2 Laser Engraving And Cutting Machine

270000.0 INR/Unit
Get a Price/Quote

Product Details:

  • Rating 100W / 130W / 150W / 180W
  • Condition New
  • Type Co2
  • Usage Other
  • Height 820 Millimeter (mm)
  • Power 100 Watt (w)
  • Voltage 240 Volt (v)
  • Click to View more
Request to Call Back Send Inquiry
X

CO2 Laser Engraving And Cutting Machine Price And Quantity

  • 270000.0 INR/Unit
  • 1 Unit

CO2 Laser Engraving And Cutting Machine Product Specifications

  • 100 Watt (w)
  • 1470 Millimeter (mm)
  • Other
  • CO2 Laser Engraving And Cutting Machine
  • 820 Millimeter (mm)
  • 1890 X 1470 X 820 MM
  • Co2
  • Industrial Use
  • 100W / 130W / 150W / 180W
  • 1890 Millimeter (mm)
  • 1 Year
  • New
  • Blue And White
  • 240 Volt (v)
  • 250 Kilograms (kg)

CO2 Laser Engraving And Cutting Machine Trade Information

  • INDIA
  • Cash in Advance (CID), Cash Advance (CA)
  • 100 Unit Per Month
  • 15 Days
  • No
  • Standard Paking
  • Asia, Australia, Central America, South America, Western Europe, North America, Eastern Europe, Middle East, Africa
  • All India
  • ISO, IEC

Product Description

CO Laser Engraving & Cutting Machine Technical Specification

1. General Description

CO Laser Engraving & Cutting Machine uses a sealed CO gas laser tube (CO + N + He mixture) to generate a high-energy infrared beam for cutting and engraving non-metal materials like acrylic, wood, leather, rubber, etc.

2. Key Technical Parameters

Parameter Specification
Laser Type Sealed CO Glass Laser Tube
Laser Power 60W / 80W / 100W / 130W / 150W / 180W
Working Area 900 600 mm / 1300 900 mm (standard)
Laser Wavelength 10.6 m
Engraving Speed 0 60,000 mm/min
Cutting Speed 0 10,000 mm/min
Cutting Thickness 0 15 mm (material dependent)
Position Accuracy 0.01 mm
Resolution Up to 4000 DPI

3. Mechanical & Electrical Specifications

Parameter Specification
Working Table Honeycomb / Knife Strip Table
Table Adjustment Motorized Up-Down (Optional)
Drive System Stepper Motor / Servo Motor
Guide Rail Linear Guide Rail (High Precision)
Cooling System Water Cooling (Chiller / Pump)
Air Assist Air Pump / Compressor
Exhaust System Industrial Exhaust Fan
Power Supply AC 220V 10%, 50/60 Hz
Machine Power Consumption Approx. 500W 1500W

4. Control System & Software

Parameter Specification
Controller DSP Controller (Ruida / RDWorks)
Software Compatibility CorelDraw, AutoCAD, LightBurn, Photoshop
File Formats Supported BMP, PLT, DXF, AI, CDR, JPG, PNG
Interface USB / Ethernet
Operating System Windows XP / 7 / 8 / 10
Offline Operation Supported

5. Standard Features

  • Auto focus (optional)
  • Red dot pointer positioning
  • Power-off resume function
  • High-precision laser head
  • Emergency stop system
  • Air assist for clean cutting
  • Smoke exhaust system
  • Water protection system
  • Compatible with CAD/CAM software

6. Material Compatibility

Cutting & Engraving Materials

  • Acrylic / PMMA
  • MDF / Wood / Plywood
  • Leather / PU / Rubber
  • Fabric / Textile
  • Paper / Cardboard
  • Plastic

Engraving Only

  • Glass
  • Marble / Stone
  • Ceramic
  • Anodized / Coated Metal

7. Optional Accessories

  • Industrial Water Chiller (CW-5000 / CW-5200)
  • Rotary Attachment (for cylindrical objects)
  • CCD Camera Positioning System
  • Auto Feeding System (for fabric/roll material)
  • Dual Head / Multi-head Cutting System

8. Machine Applications

  • Advertising Industry (Sign boards, acrylic letters)
  • Packaging Industry
  • Leather & Footwear Industry
  • Textile & Garment Industry
  • Wood Craft & Furniture
  • Rubber Stamp Making
