TECHNICAL DESCRIPTION FIBER LASER MARKING MACHINE
Overview
The Fiber Laser Marking Machine is a high-precision, non-contact marking system designed for permanent engraving on metallic and selected non-metallic materials. It utilizes advanced fiber laser technology to deliver high-speed, high-contrast, and maintenance-free marking solutions for industrial applications.
Working Principle
The system generates a high-energy laser beam through a fiber laser source, which is directed via a galvanometer scanning system onto the workpiece surface. The intense energy creates a permanent mark by oxidation, engraving, or ablation without causing mechanical stress.
Machine Configurations / Models

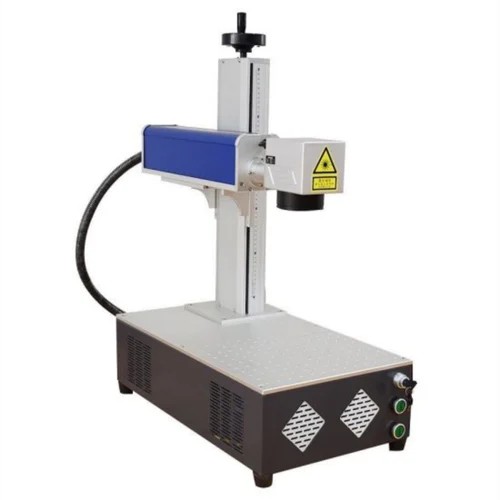

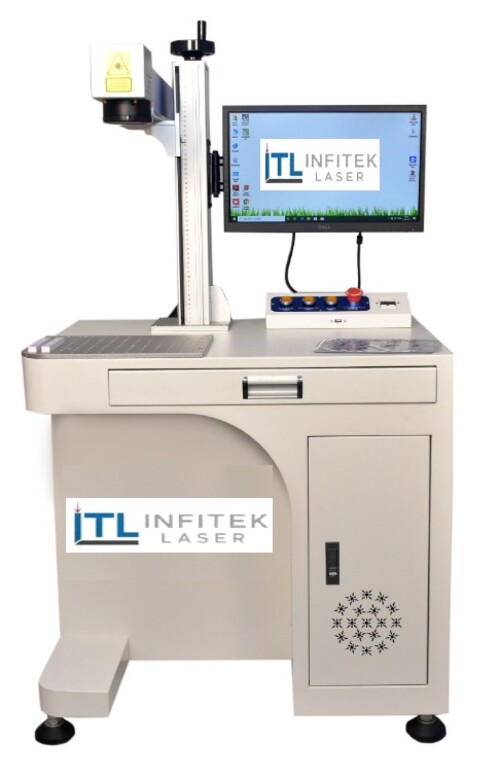

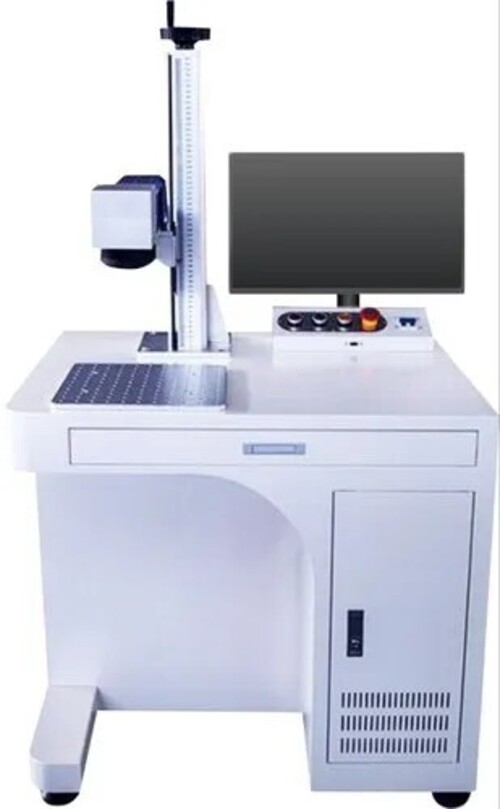

- Desktop Model Compact, stable, suitable for batch production
- Portable Model Lightweight, ideal for on-site marking

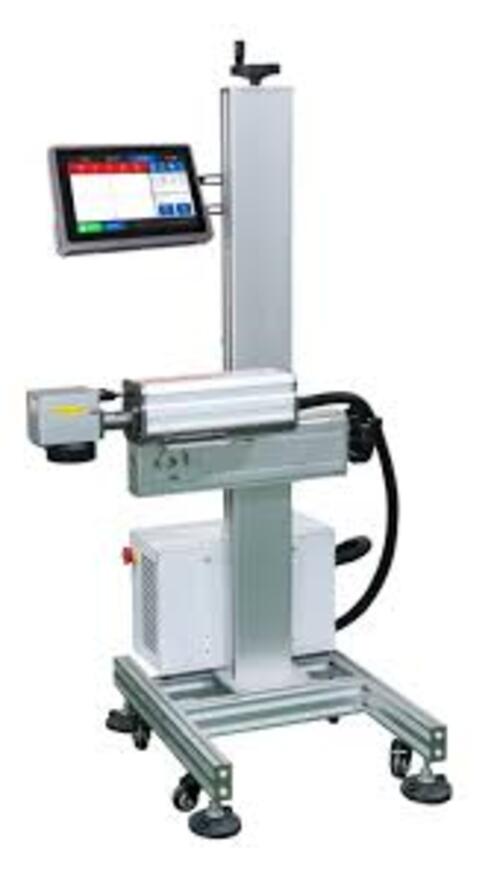

- Fly (Online) Model High-speed marking for continuous production lines
- Online Marking System Integrated with conveyor/automation systems
- CO Metal Tube Marking Machine Suitable for coated metals and non-metal materials
Main Components
- Fiber Laser Source (Raycus / JPT / IPG optional)
- Galvanometer Scanner (High-speed scanning head)
- Field Lens (F-theta lens for precise marking area)
- Control System (EZCAD software-based)
- Industrial Computer / Controller
- Laser Marking Software (Windows compatible)
- Work Table / Conveyor (as per model)
- Rotary Attachment (optional for cylindrical marking)
Technical Specifications
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Output Power |
20W / 30W / 50W / 100W |
| Wavelength |
1064 nm |
| Marking Area |
100100 mm to 300300 mm (optional) |
| Marking Speed |
Up to 7000 mm/s |
| Minimum Line Width |
0.01 mm |
| Repeat Accuracy |
0.001 mm |
| Cooling System |
Air Cooling |
| Power Supply |
220V / 50Hz |
| Power Consumption |
< 800 W |
| Supported Formats |
PLT, DXF, BMP, JPG, AI |
| Operating System |
Windows-based (EZCAD) |
Material Compatibility
Metals:
- Stainless Steel
- Mild Steel
- Aluminum
- Brass
- Copper
- Titanium
Non-Metals (Limited):
- ABS
- PVC
- Coated Materials
- Anodized Surfaces
Applications
- Serial Number Marking
- Barcode / QR Code Marking
- Logo Engraving
- Nameplate Marking
- Tool & Die Marking
- Automotive Parts Marking
- Electrical Components Marking

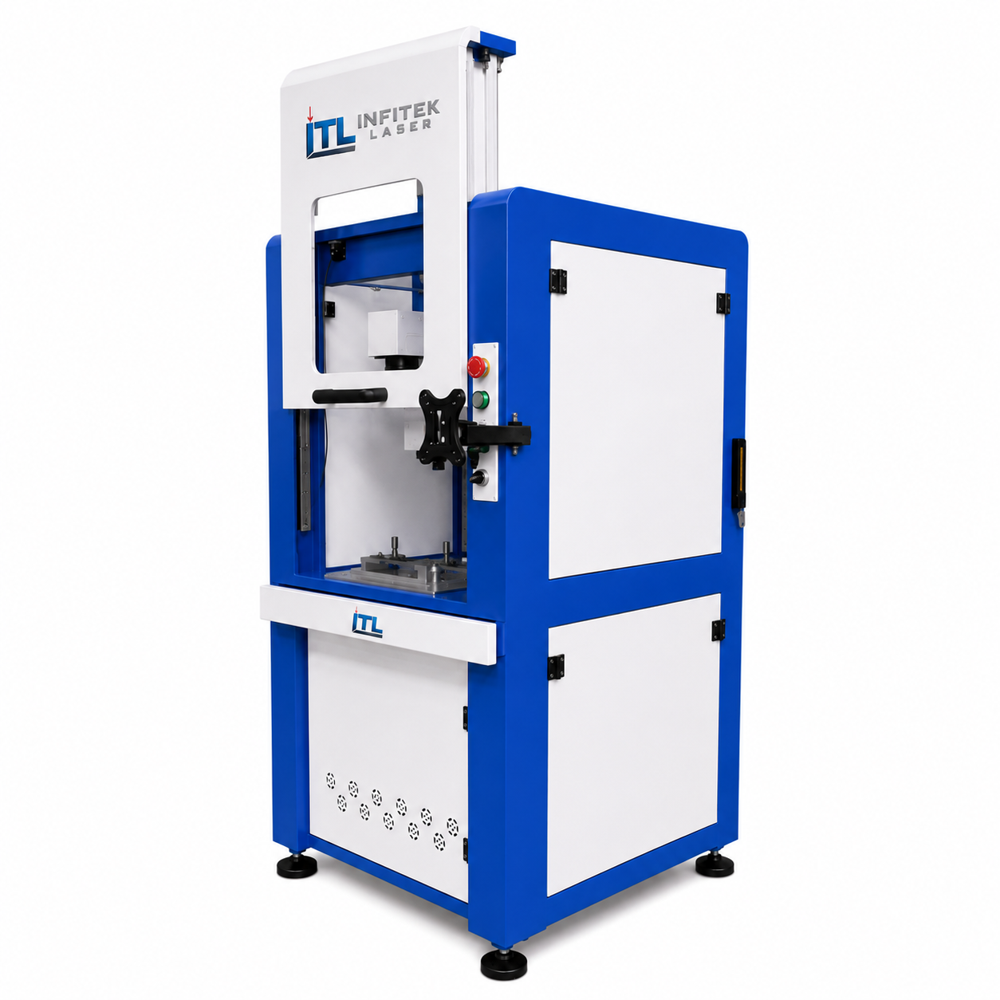

- Jewelry Engraving
Key Features
- High-Speed & High Precision Marking
- Permanent and Tamper-Proof Marking
- Maintenance-Free Operation
- Long Laser Life (>100,000 hours)
- Low Power Consumption
- No Consumables Required
- Compact and User-Friendly Design
- Suitable for Continuous Industrial Use
Safety Features
- Laser Safety Enclosure (optional)
- Emergency Stop Button
- Protective Laser Goggles
- Interlock Safety System
Advantages
- Non-contact process (no tool wear)
- Eco-friendly (no chemicals or inks)
- High reliability and low maintenance cost
- Suitable for automation and Industry 4.0 integration
Optional Accessories
- Rotary Device for cylindrical objects
- Conveyor System for online marking
- Fume Extractor
- Vision System (CCD Camera)
- Autofocus System
Superior Speed and PrecisionThis machine achieves marking speeds of up to 7000 mm/s with a precision of 0.01 mm, ensuring swift and detailed engravings. Its performance is optimized for high-volume production lines, where quality and speed are paramount. Consistent results are guaranteed for various metals and electronics, making it a valuable addition to any industrial setting.
Versatile and Customizable ApplicationWith the flexibility of power options (20W, 30W, 50W) and a customizable marking area, the machine adapts to different application needs. Supports various file formats like PLT, BMP, JPG, PNG, DXF, AI, and DST, facilitating easy integration into design and coding workflows - perfect for exporters and traders requiring tailored solutions.
Seamless Production Line IntegrationThe embedded marking system and options for USB/Ethernet connectivity enable effortless inclusion in automated production environments. Air cooling ensures minimal maintenance, while robust construction maintains efficiency, even with continuous usage. This design streamlines permanent laser marking directly onto your production line.
FAQ's of Online Laser Marking Machine:
Q: How does the online laser marking machine integrate into existing production lines?
A: The machine features an embedded marking system and supports USB and Ethernet connectivity, making it straightforward to connect and synchronize with automated production lines. It is designed to provide continuous, real-time marking during manufacturing processes.
Q: What materials and applications is this laser marking machine best suited for?
A: This machine is engineered primarily for metal marking and electronics, offering precise and permanent marks suitable for coding, identification, and traceability in industrial environments.
Q: When should I opt for higher laser power, such as 50W?
A: Higher laser power (e.g., 50W) is ideal when you require deeper marking or need to work with harder metals. It is also recommended for faster throughput in high-volume operations.
Q: Where can this machine be installed and what are its size requirements?
A: With approximate dimensions of 600 mm x 400 mm x 500 mm, the machine fits conveniently in most industrial workshops and production lines. It operates efficiently within temperatures from 0C to 40C.
Q: What is the process for marking with this machine?
A: Simply upload your designs in formats like PLT, BMP, JPG, PNG, DXF, AI, or DST using the embedded system, adjust marking parameters, and begin the automated marking sequence. Air cooling and robust electronics ensure consistent performance throughout.
Q: How can users benefit from using this marking machine in their operations?
A: Users benefit from high-speed, precision marking that is permanent and maintenance-light, enabling efficient product identification and coding, essential for compliance and traceability in export, supply, and trading.
