Product Description
TECHNICAL DESCRIPTION FIBER LASER MARKING MACHINE
Overview
The Fiber Laser Marking Machine is a high-precision, non-contact marking system designed for permanent engraving on metallic and selected non-metallic materials. It utilizes advanced fiber laser technology to deliver high-speed, high-contrast, and maintenance-free marking solutions for industrial applications.
Working Principle
The system generates a high-energy laser beam through a fiber laser source, which is directed via a galvanometer scanning system onto the workpiece surface. The intense energy creates a permanent mark by oxidation, engraving, or ablation without causing mechanical stress.
Machine Configurations / Models

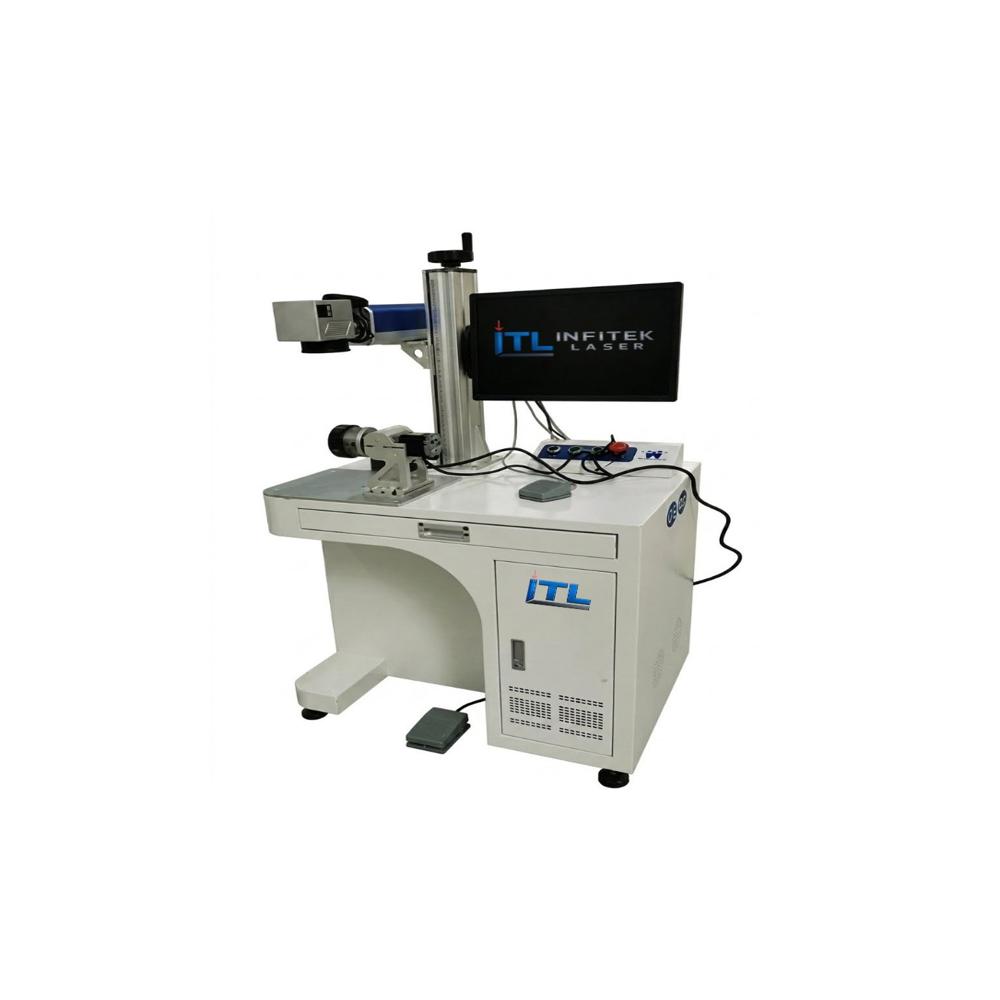

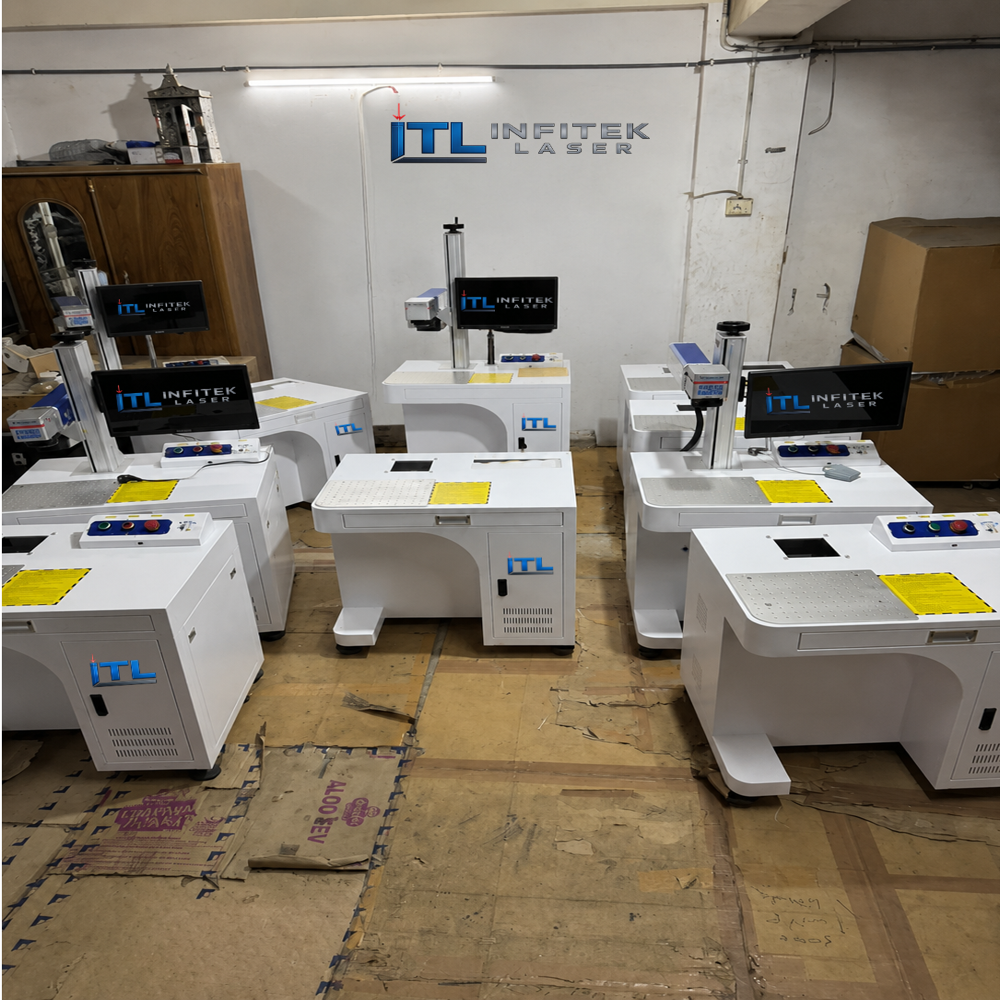

- Desktop Model Compact, stable, suitable for batch production
- Portable Model Lightweight, ideal for on-site marking
- Fly (Online) Model High-speed marking for continuous production lines
- Online Marking System Integrated with conveyor/automation systems
- CO Metal Tube Marking Machine Suitable for coated metals and non-metal materials
Main Components
- Fiber Laser Source (Raycus / JPT / IPG optional)
- Galvanometer Scanner (High-speed scanning head)
- Field Lens (F-theta lens for precise marking area)
- Control System (EZCAD software-based)
- Industrial Computer / Controller
- Laser Marking Software (Windows compatible)
- Work Table / Conveyor (as per model)
- Rotary Attachment (optional for cylindrical marking)
Technical Specifications
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Output Power |
20W / 30W / 50W / 100W |
| Wavelength |
1064 nm |
| Marking Area |
100100 mm to 300300 mm (optional) |
| Marking Speed |
Up to 7000 mm/s |
| Minimum Line Width |
0.01 mm |
| Repeat Accuracy |
0.001 mm |
| Cooling System |
Air Cooling |
| Power Supply |
220V / 50Hz |
| Power Consumption |
< 800 W |
| Supported Formats |
PLT, DXF, BMP, JPG, AI |
| Operating System |
Windows-based (EZCAD) |
Material Compatibility
Metals:
- Stainless Steel
- Mild Steel
- Aluminum
- Brass
- Copper
- Titanium
Non-Metals (Limited):
- ABS
- PVC
- Coated Materials
- Anodized Surfaces
Applications
- Serial Number Marking
- Barcode / QR Code Marking
- Logo Engraving
- Nameplate Marking
- Tool & Die Marking
- Automotive Parts Marking
- Electrical Components Marking
- Jewelry Engraving
Key Features
- High-Speed & High Precision Marking
- Permanent and Tamper-Proof Marking
- Maintenance-Free Operation
- Long Laser Life (>100,000 hours)
- Low Power Consumption
- No Consumables Required
- Compact and User-Friendly Design
- Suitable for Continuous Industrial Use
Safety Features
- Laser Safety Enclosure (optional)
- Emergency Stop Button
- Protective Laser Goggles
- Interlock Safety System
Advantages
- Non-contact process (no tool wear)
- Eco-friendly (no chemicals or inks)
- High reliability and low maintenance cost
- Suitable for automation and Industry 4.0 integration
Optional Accessories
- Rotary Device for cylindrical objects
- Conveyor System for online marking
- Fume Extractor
- Vision System (CCD Camera)
- Autofocus System
State-of-the-Art Fiber Laser TechnologyLeveraging industry-leading fiber laser sources, this marking machine ensures long-lasting, high-contrast marks for traceability and branding on various metals. Its design supports both manual and optional auto-focus, adapting to diverse application needs. The system is engineered for minimal maintenance and exceptional durability.
Flexible Work Area and Fast OperationWith marking areas available from 100mm x 100mm up to 300mm x 300mm, this machine caters to both small components and larger metal surfaces. The high-speed marking-up to 7000mm/s-enables rapid processing without sacrificing quality, making it highly productive for busy manufacturing environments.
User-Friendly Interface and Broad Format SupportThe computer-controlled marking process employs dedicated software compatible with popular file formats including PLT, DXF, BMP, AI, and more. This flexibility streamlines integration into existing workflows, allowing effortless import of logos, graphics, and serial numbers.
Energy Efficient and Reliable PerformanceOperated on AC 220V/50Hz power and cooled by air, the system is engineered for continuous use within environments ranging from 10C to 35C. The laser module's expected lifespan of 100,000 hours translates to years of dependable service, minimizing operational costs.
FAQ's of Metal Marking Laser Machine:
Q: How does the metal marking laser machine operate?
A: The machine emits a focused fiber laser (wavelength 1064nm) onto metal surfaces. This high-energy beam modifies the surface to create precise, permanent marks. The process is controlled via dedicated software on a computer, allowing for customization and automation.
Q: What types of metals can be marked using this machine?
A: It is suitable for marking a wide range of metal surfaces including steel, aluminum, copper, brass, and various alloys. This makes it ideal for industrial applications requiring durable and clear identification marks.
Q: When should manual versus automatic focusing be used?
A: Manual focus is standard and suitable for most regular applications, giving the user precise control. Automatic focusing-available in certain configurations-is recommended for applications requiring quick adjustment to varying workpiece heights or when maximizing efficiency for different batch sizes.
Q: Where should this laser marking machine be installed?
A: Install the machine in a clean, dry, and dust-free workspace within a temperature range of 10C to 35C. This environment helps ensure stable operation, accurate marking, and prolonged equipment lifespan.
Q: What is the process for importing designs or logos into the system?
A: Designs can be imported directly through the software, which supports multiple file formats, such as PLT, DXF, BMP, JPG, and AI. Simply load your design file into the software, set your marking parameters, and the machine will handle the rest.
Q: How deep can the laser mark into metal?
A: The maximum marking depth is approximately 1.2mm, though this may vary depending on the material type and selected power output. This depth is sufficient for durable marks needed for industrial applications.
Q: What are the key benefits of using this machine for metal marking?
A: Key advantages include high marking speed, excellent precision, long laser life (up to 100,000 hours), minimal maintenance, and compatibility with diverse software formats. The compact design is ideal for desktops, optimizing workspace utilization.
