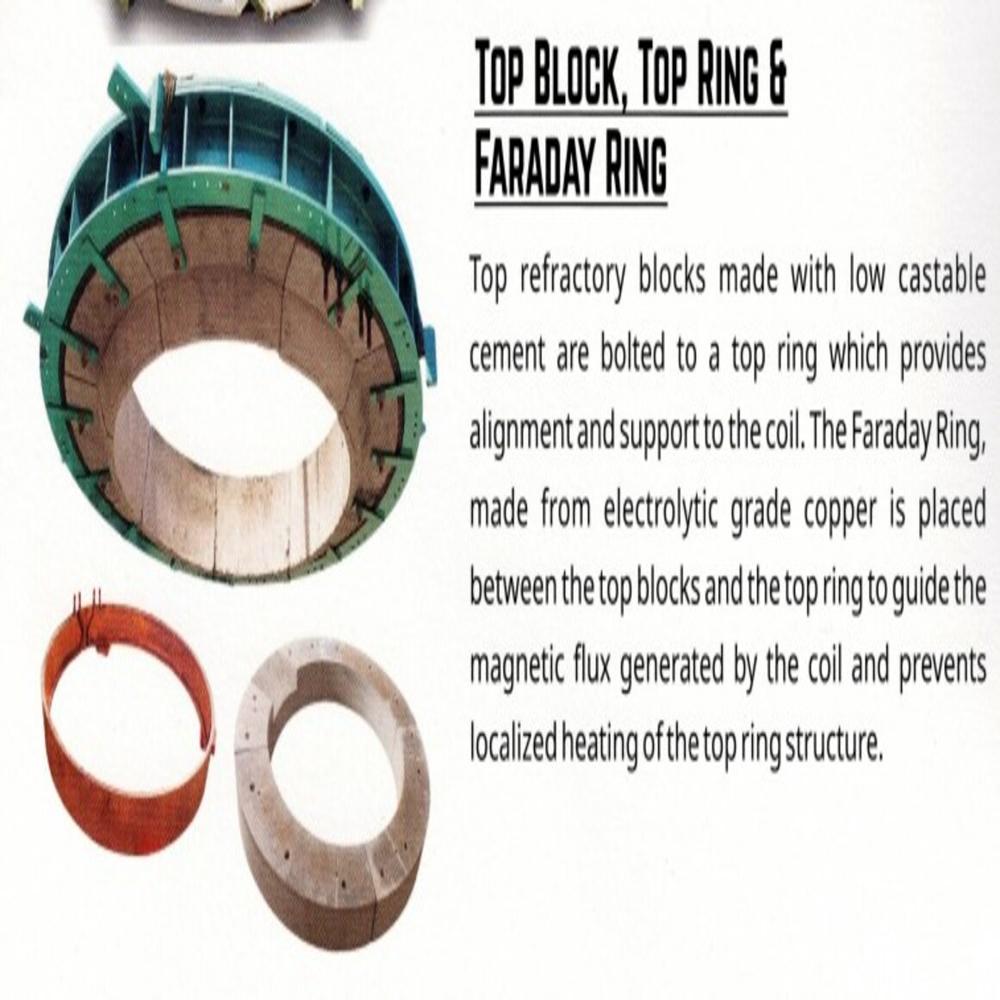

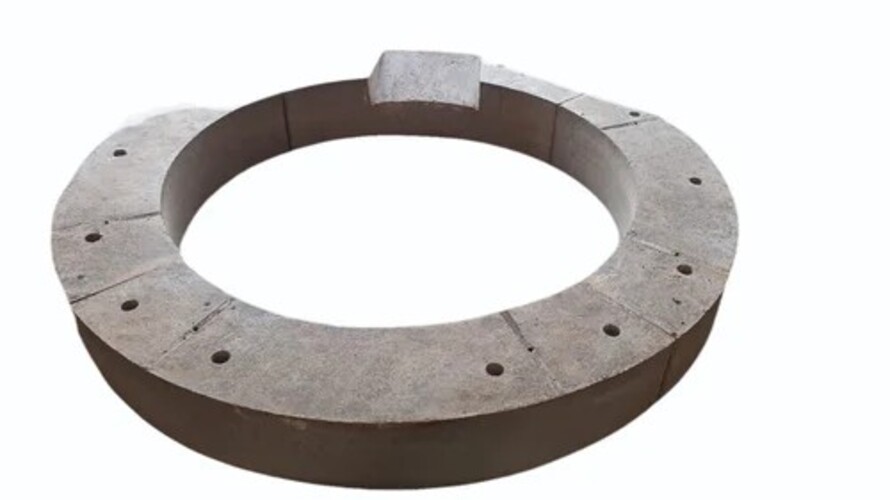

TECHNICAL DESCRIPTION INDUCTION FURNACE TOP RING
1. Overview
The
Induction Furnace Top Ring is a critical structural and functional component installed at the top section of an induction melting furnace. It serves as a
supporting, protective, and alignment element for refractory lining and furnace accessories, while ensuring operational stability under high-temperature conditions.
2. Function
- Provides mechanical support to the upper refractory lining
- Ensures proper alignment of furnace shell and coil assembly
- Acts as a retaining ring for refractory materials
- Protects furnace structure from thermal deformation and mechanical stress
- Supports mounting of fume extraction hood / cover system
3. Material of Construction
- High-Grade Alloy Steel / Mild Steel (IS 2062 / EN Series)
- Optional: Heat-Resistant Cast Steel / Stainless Steel (SS 304 / SS 310) for higher temperature applications
- Inner surface may be lined with refractory castable or ceramic coating
4. Design Features
- Heavy-duty fabricated or cast construction
- Precisely machined for perfect roundness and fitment
- Reinforced with stiffeners or ribs for high load-bearing capacity
- Provision for lifting lugs / handling hooks
- Designed to withstand thermal expansion and contraction cycles
5. Dimensions
- Custom-built as per furnace capacity and diameter
- Typical diameter range: 500 mm to 3000 mm+
- Thickness: 25 mm to 100 mm (depending on furnace size)
- Tolerance: As per ISO standards
6. Surface Treatment
- Shot blasted / sand blasted finish
- Optional heat-resistant paint / anti-corrosion coating
- Machined contact surfaces for precise assembly
7. Operating Conditions
- Designed for temperatures up to 1600C (depending on material grade)
- Suitable for continuous operation in steel, iron, and alloy melting applications
8. Applications
- Coreless induction furnaces
- Foundries and casting plants
- Alloy and scrap melting operations
9. Quality & Inspection
- Dimensional inspection with precision measuring tools
- Ultrasonic testing (UT) / Magnetic particle testing (MPT) (if required)
- Material test certificates (MTC) provided
- Visual and structural integrity checks
10. Advantages
- High structural strength and durability
- Excellent thermal resistance
- Long service life with minimal maintenance
- Ensures safe and stable furnace operation
