Product Description

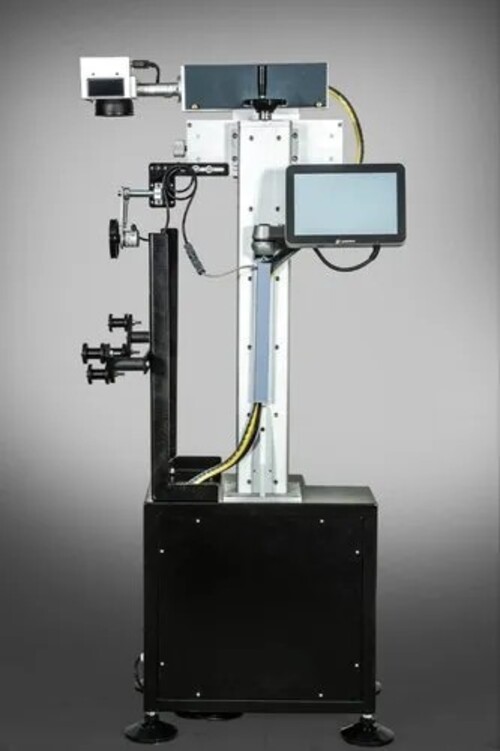

TECHNICAL DESCRIPTION FIBER LASER MARKING MACHINE
Overview
The Fiber Laser Marking Machine is a high-precision, non-contact marking system designed for permanent engraving on metallic and selected non-metallic materials. It utilizes advanced fiber laser technology to deliver high-speed, high-contrast, and maintenance-free marking solutions for industrial applications.
Working Principle
The system generates a high-energy laser beam through a fiber laser source, which is directed via a galvanometer scanning system onto the workpiece surface. The intense energy creates a permanent mark by oxidation, engraving, or ablation without causing mechanical stress.
Machine Configurations / Models

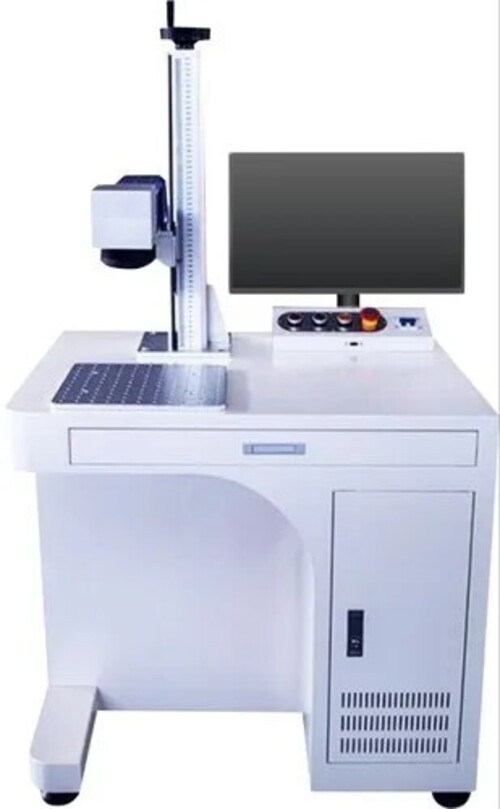

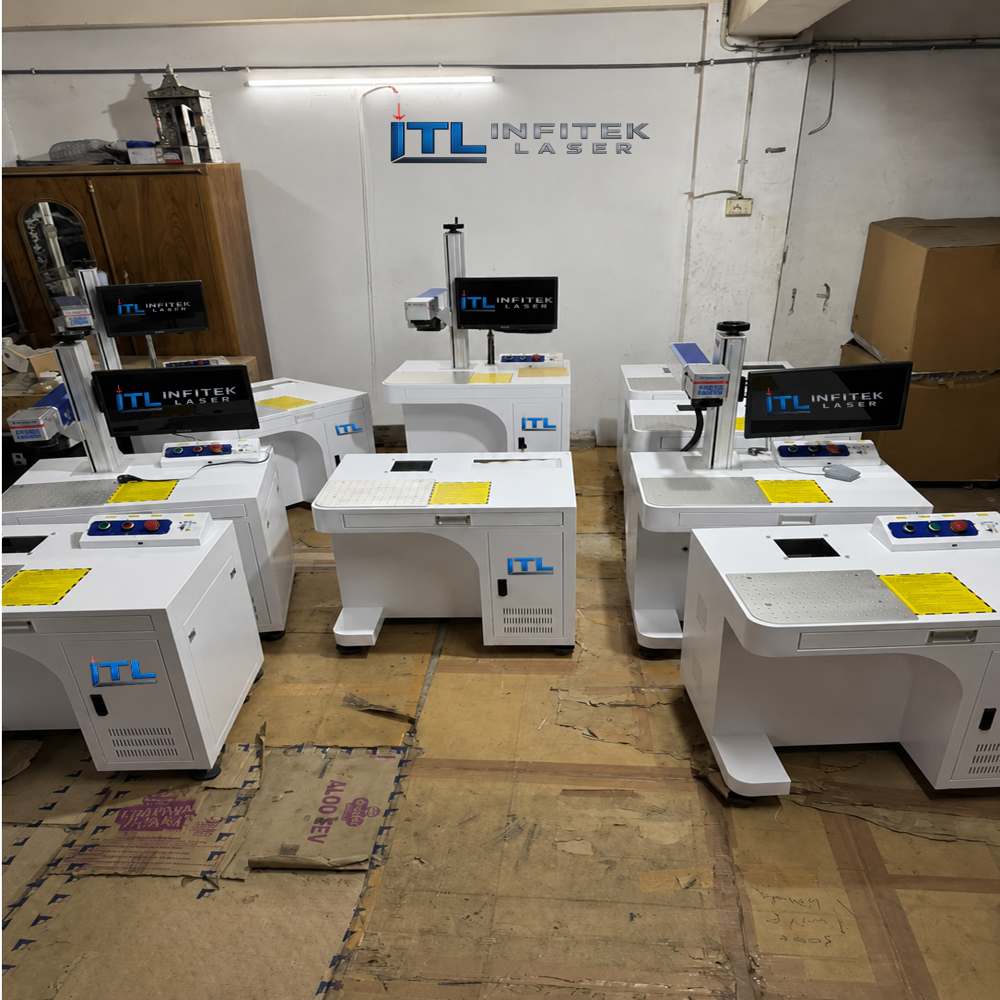

- Desktop Model Compact, stable, suitable for batch production
- Portable Model Lightweight, ideal for on-site marking
- Fly (Online) Model High-speed marking for continuous production lines
- Online Marking System Integrated with conveyor/automation systems
- CO Metal Tube Marking Machine Suitable for coated metals and non-metal materials
Main Components
- Fiber Laser Source (Raycus / JPT / IPG optional)
- Galvanometer Scanner (High-speed scanning head)
- Field Lens (F-theta lens for precise marking area)
- Control System (EZCAD software-based)
- Industrial Computer / Controller
- Laser Marking Software (Windows compatible)
- Work Table / Conveyor (as per model)

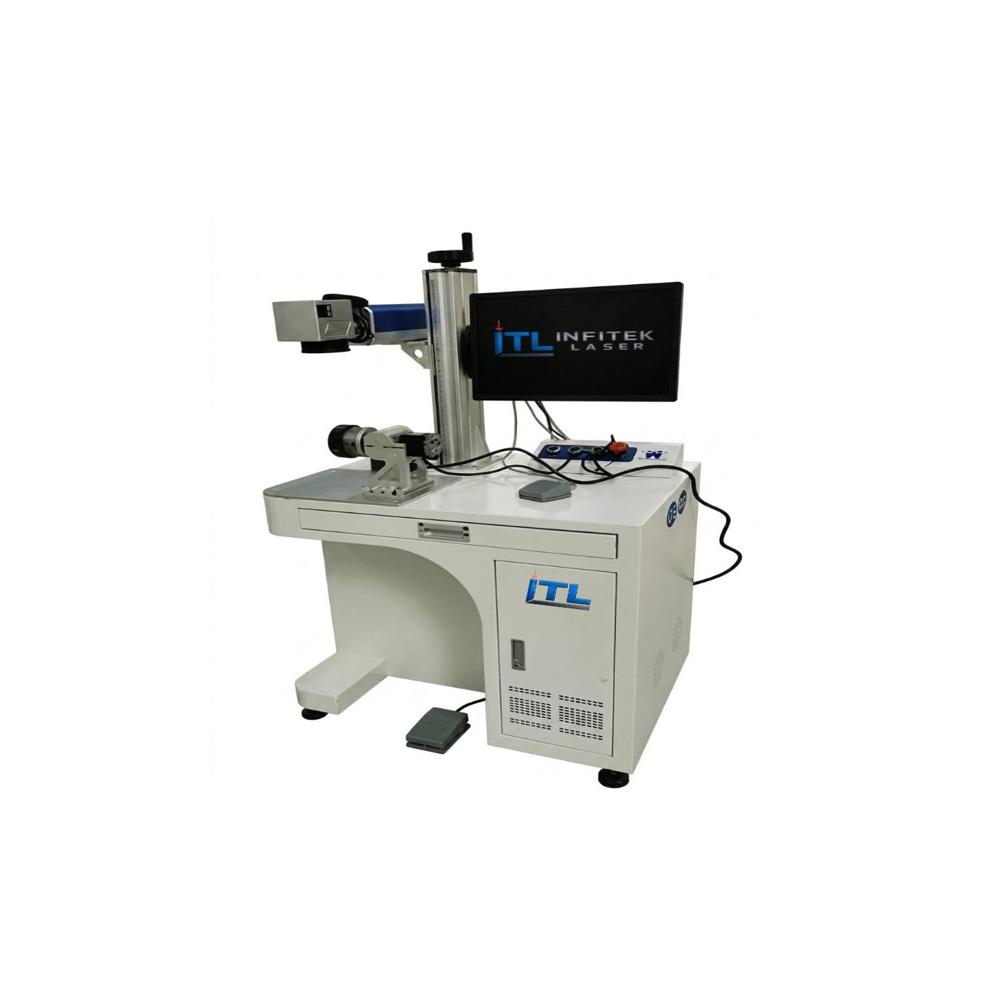

- Rotary Attachment (optional for cylindrical marking)
Technical Specifications
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Output Power |
20W / 30W / 50W / 100W |
| Wavelength |
1064 nm |
| Marking Area |
100100 mm to 300300 mm (optional) |
| Marking Speed |
Up to 7000 mm/s |
| Minimum Line Width |
0.01 mm |
| Repeat Accuracy |
0.001 mm |
| Cooling System |
Air Cooling |
| Power Supply |
220V / 50Hz |
| Power Consumption |
< 800 W |
| Supported Formats |
PLT, DXF, BMP, JPG, AI |
| Operating System |
Windows-based (EZCAD) |
Material Compatibility
Metals:
- Stainless Steel
- Mild Steel
- Aluminum
- Brass
- Copper
- Titanium
Non-Metals (Limited):
- ABS
- PVC
- Coated Materials
- Anodized Surfaces
Applications
- Serial Number Marking
- Barcode / QR Code Marking
- Logo Engraving
- Nameplate Marking
- Tool & Die Marking
- Automotive Parts Marking
- Electrical Components Marking
- Jewelry Engraving
Key Features
- High-Speed & High Precision Marking
- Permanent and Tamper-Proof Marking
- Maintenance-Free Operation
- Long Laser Life (>100,000 hours)
- Low Power Consumption
- No Consumables Required
- Compact and User-Friendly Design
- Suitable for Continuous Industrial Use
Safety Features

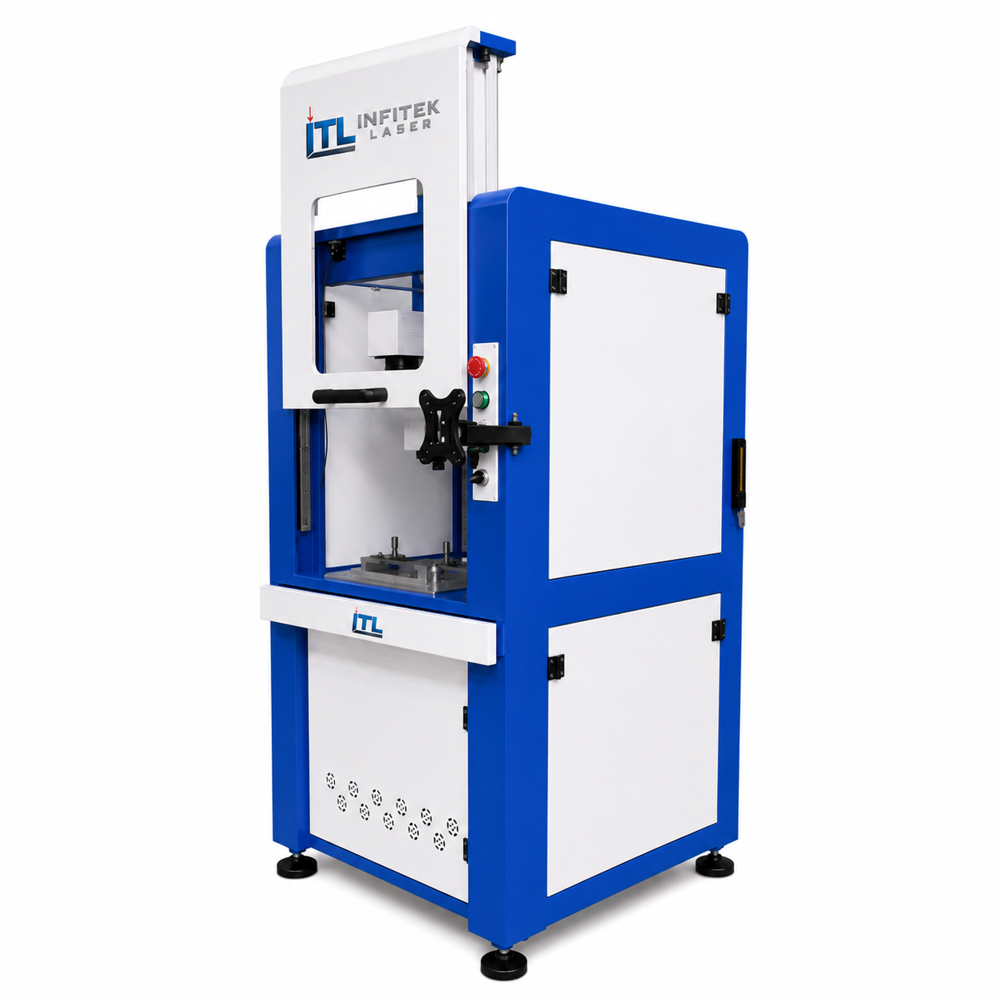

- Laser Safety Enclosure (optional)
- Emergency Stop Button
- Protective Laser Goggles
- Interlock Safety System
Advantages
- Non-contact process (no tool wear)
- Eco-friendly (no chemicals or inks)
- High reliability and low maintenance cost
- Suitable for automation and Industry 4.0 integration
Optional Accessories
- Rotary Device for cylindrical objects
- Conveyor System for online marking
- Fume Extractor
- Vision System (CCD Camera)
- Autofocus System
High Precision and SpeedThis fiber laser marking machine ensures superior precision with a repeat accuracy of 0.002 mm and a minimum line width of 0.01 mm. It operates at an impressive speed of up to 7000 mm/s, making it ideal for industrial environments where efficiency is crucial. Users can mark and engrave intricate graphics, codes, and texts on products rapidly without compromising accuracy.
Flexible Power and Marking AreaWith optional 20W, 30W, or 50W laser powers, you can tailor the system for your specific applications, whether for shallow etching or deep engraving. The marking area starts at a standard 110mm x 110mm but is customizable to fit larger or unique workpieces, adding versatility for various marking needs in industrial settings.
Advanced Software CompatibilityEquipped with integrated software and compatible with EZCAD, this machine seamlessly processes files in PLT, DXF, BMP, JPG, TIF, AI, and more. Users benefit from an intuitive interface and convenient design, enhancing productivity. The system is computer-controlled for precise parameter adjustments, ensuring top-quality output.
FAQ's of Fiber Laser Marking Machine:
Q: How does the fiber laser marking machine achieve such high precision?
A: The machine utilizes advanced optics and stable fiber laser technology, resulting in a repeat accuracy of 0.002 mm and a minimum line width of just 0.01 mm. Integrated computer control and high-speed galvo systems ensure consistent and reliable results.
Q: What materials can be marked with this fiber laser marking machine?
A: It is suitable for marking a wide variety of electronic components and industrial materials such as metals, plastics, and coated materials. The adjustable power settings make it adaptable for diverse applications in electronics and industrial sectors.
Q: When should I choose between 20W, 30W, or 50W laser power options?
A: Select 20W for general marking and low-depth applications. 30W is ideal for medium-depth or faster marking needs, while 50W suits deep engraving or larger volume production environments where higher power provides greater efficiency.
Q: Where can this machine be installed, and what are the power requirements?
A: Designed for factory and workshop environments, this machine requires a standard 220V/50Hz or 110V/60Hz power supply. Its compact footprint allows easy integration into existing production lines in a wide range of industrial settings.
Q: What is the process for marking or engraving with this machine?
A: Prepare your design using compatible software (EZCAD), import supported file formats like PLT, DXF, or BMP, and adjust machine settings via the computer control system. Position the workpiece, focus (manually or automatically), and start marking with high-speed precision.
Q: How user-friendly is the operation and maintenance of the machine?
A: With integrated, user-friendly software and a straightforward air cooling system, the machine is easy to operate and maintain. The robust design and long lifespan of 100,000 hours minimize downtime and maintenance costs.
Q: What are the main benefits of using this fiber laser marking machine?
A: The primary benefits include ultra-fast marking speeds, exceptional accuracy, flexibility in marking various materials and sizes, and minimal maintenance. The system's longevity, software compatibility, and precise control ensure efficiency and lower your overall operational costs.
