Product Description

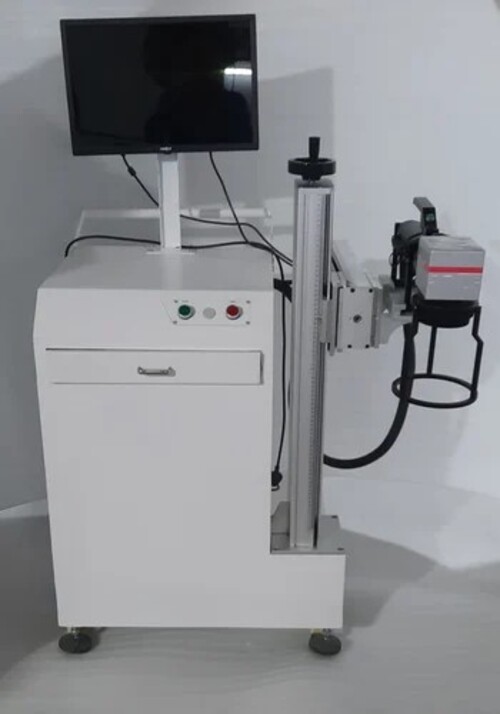

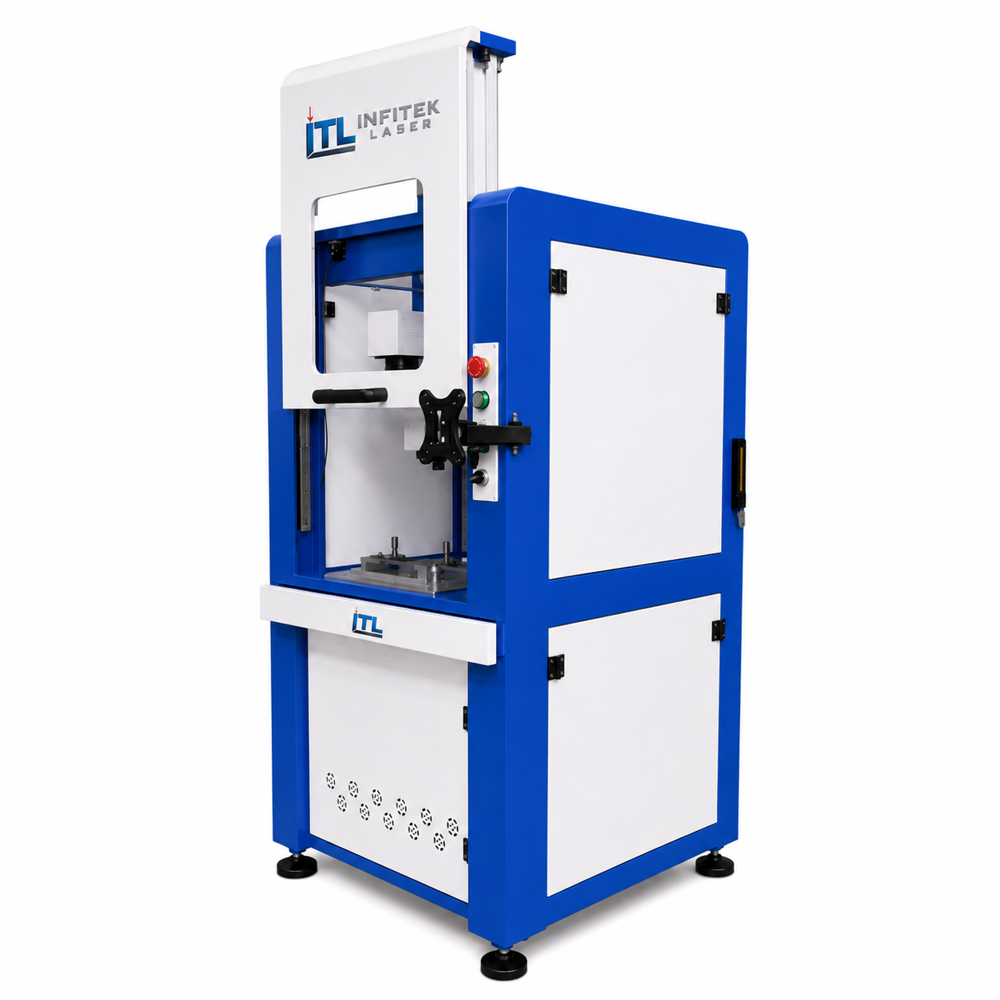

TECHNICAL DESCRIPTION FIBER LASER MARKING MACHINE
Overview
The Fiber Laser Marking Machine is a high-precision, non-contact marking system designed for permanent engraving on metallic and selected non-metallic materials. It utilizes advanced fiber laser technology to deliver high-speed, high-contrast, and maintenance-free marking solutions for industrial applications.
Working Principle
The system generates a high-energy laser beam through a fiber laser source, which is directed via a galvanometer scanning system onto the workpiece surface. The intense energy creates a permanent mark by oxidation, engraving, or ablation without causing mechanical stress.
Machine Configurations / Models

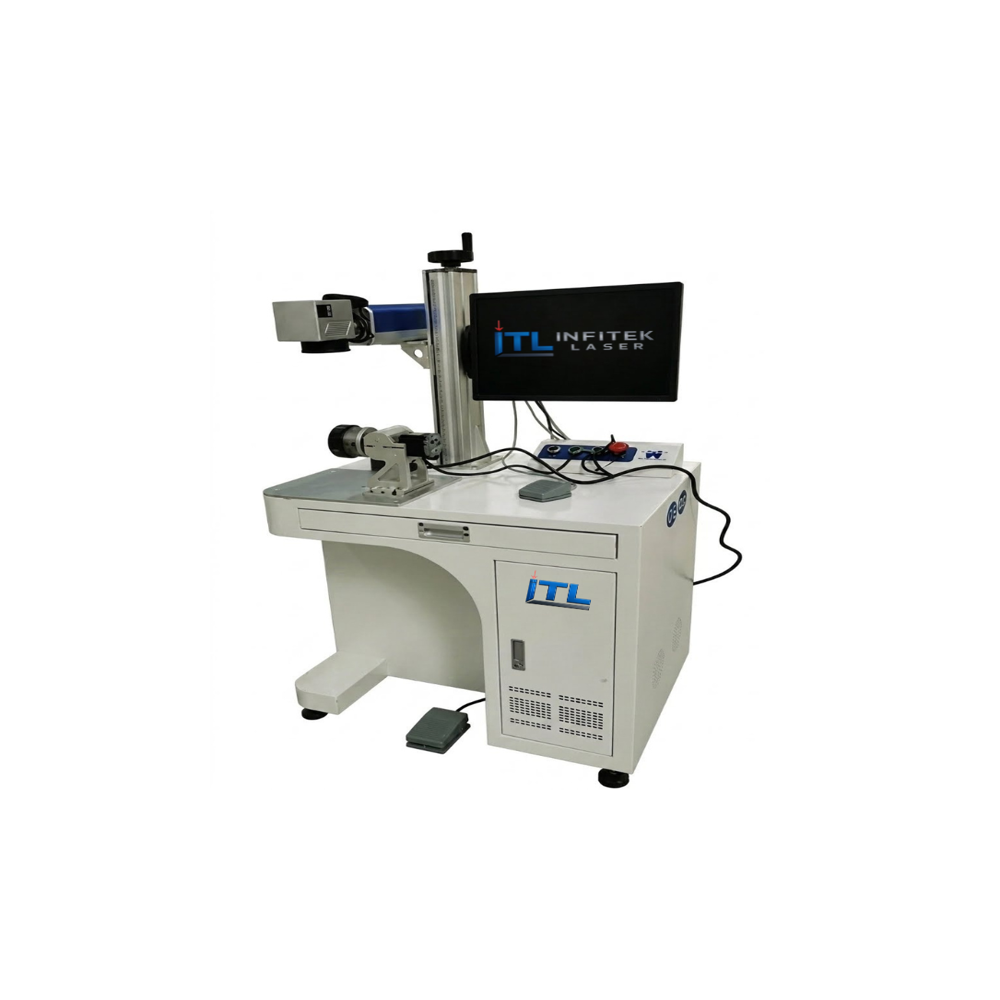

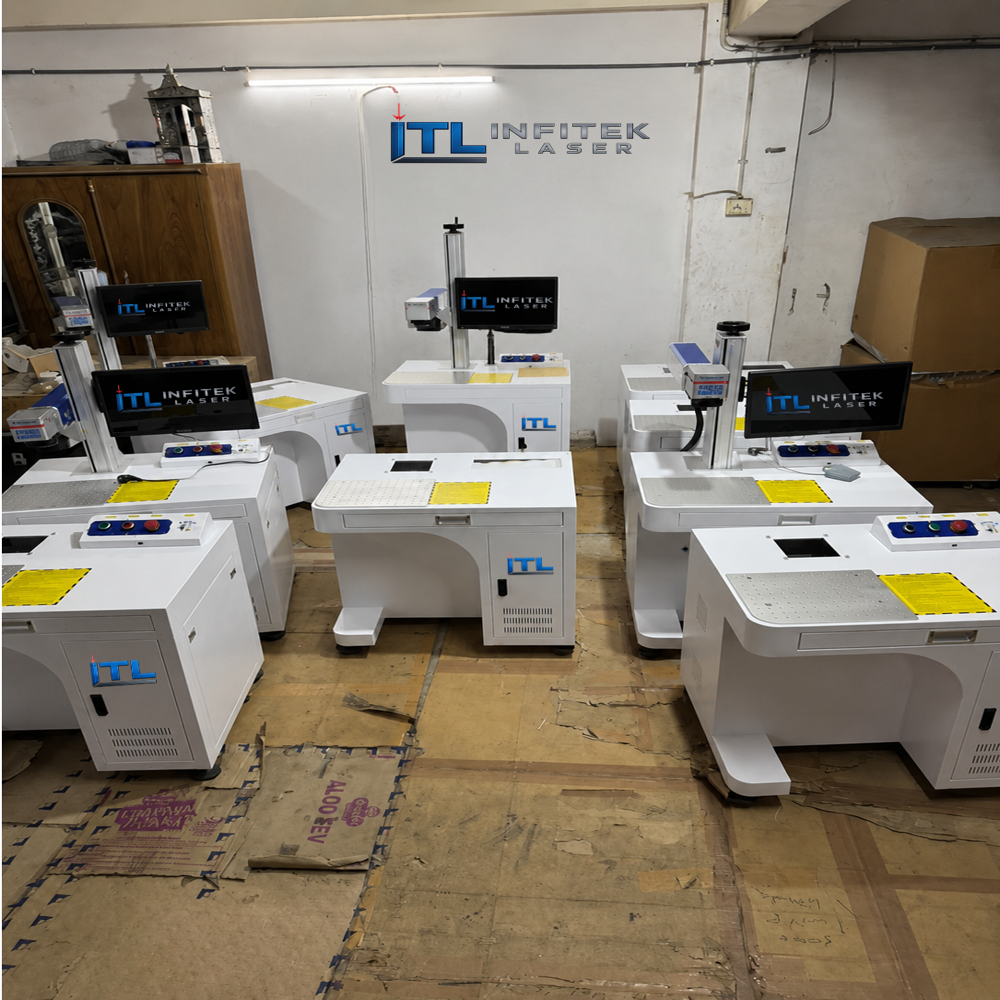

- Desktop Model Compact, stable, suitable for batch production
- Portable Model Lightweight, ideal for on-site marking
- Fly (Online) Model High-speed marking for continuous production lines
- Online Marking System Integrated with conveyor/automation systems
- CO Metal Tube Marking Machine Suitable for coated metals and non-metal materials
Main Components
- Fiber Laser Source (Raycus / JPT / IPG optional)
- Galvanometer Scanner (High-speed scanning head)
- Field Lens (F-theta lens for precise marking area)
- Control System (EZCAD software-based)
- Industrial Computer / Controller
- Laser Marking Software (Windows compatible)
- Work Table / Conveyor (as per model)
- Rotary Attachment (optional for cylindrical marking)
Technical Specifications
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Output Power |
20W / 30W / 50W / 100W |
| Wavelength |
1064 nm |
| Marking Area |
100100 mm to 300300 mm (optional) |
| Marking Speed |
Up to 7000 mm/s |
| Minimum Line Width |
0.01 mm |
| Repeat Accuracy |
0.001 mm |
| Cooling System |
Air Cooling |
| Power Supply |
220V / 50Hz |
| Power Consumption |
< 800 W |
| Supported Formats |
PLT, DXF, BMP, JPG, AI |
| Operating System |
Windows-based (EZCAD) |
Material Compatibility
Metals:
- Stainless Steel
- Mild Steel
- Aluminum
- Brass
- Copper
- Titanium
Non-Metals (Limited):
- ABS
- PVC
- Coated Materials
- Anodized Surfaces
Applications
- Serial Number Marking
- Barcode / QR Code Marking
- Logo Engraving
- Nameplate Marking
- Tool & Die Marking
- Automotive Parts Marking
- Electrical Components Marking
- Jewelry Engraving
Key Features
- High-Speed & High Precision Marking
- Permanent and Tamper-Proof Marking
- Maintenance-Free Operation
- Long Laser Life (>100,000 hours)
- Low Power Consumption
- No Consumables Required
- Compact and User-Friendly Design
- Suitable for Continuous Industrial Use
Safety Features
- Laser Safety Enclosure (optional)
- Emergency Stop Button
- Protective Laser Goggles
- Interlock Safety System
Advantages
- Non-contact process (no tool wear)
- Eco-friendly (no chemicals or inks)
- High reliability and low maintenance cost
- Suitable for automation and Industry 4.0 integration
Optional Accessories
- Rotary Device for cylindrical objects
- Conveyor System for online marking
- Fume Extractor
- Vision System (CCD Camera)
- Autofocus System
Versatile Marking Across IndustriesDesigned for exporters, suppliers, and traders in India, this fiber laser engraving machine is suitable for a host of applications, including metal marking, permanent coding, serializing, and decorative etching. Its customizable marking area and laser power options accommodate both intricate and large-scale projects, providing unmatched flexibility for varied industrial environments.
Exceptional Precision and SpeedEnjoy high-speed processing up to 7000mm/s combined with exquisite detail down to 0.01mm line width and 0.2mm minimum character size. The machine ensures consistently sharp and accurate markings, essential for precision-driven industries such as electronics and machinery manufacturing, enhancing both productivity and product quality.
User-Friendly and Maintenance-Free OperationWith air cooling and a maintenance-free design, this engraver offers worry-free and efficient performance. The EZCAD control system is intuitive, compatible with Windows XP/7/8/10, and supports a wide range of graphic formats. Reliable power options and robust construction ensure durability and long service life, reducing overall operational costs.
FAQ's of Fiber Laser Engraving Machine:
Q: How does the fiber laser engraving machine achieve high precision in metal marking?
A: The machine uses a 1064nm laser source paired with advanced EZCAD control software, achieving a minimum line width of 0.01mm and repetition accuracy of 0.002mm. This results in clear, detailed engravings, even on small components and complex graphics.
Q: What materials can be engraved or marked with this machine?
A: While optimized for metals, the machine is suitable for engraving, marking, etching, or coding a variety of materials, especially electronic components and industrial metals. Its adjustability ensures compatibility with different substrates, depending on engraving depth requirements.
Q: When should I use a higher laser power, such as 50W or 100W?
A: Higher laser powers are ideal for deeper engraving, faster marking, or working with tougher materials. Choose 50W or 100W models for high-throughput production lines, thicker metals, or when large marking areas or depths are required.
Q: Where is this fiber laser engraving machine typically used?
A: It is commonly used in manufacturing plants, electronics workshops, metal fabrication units, and export industries across India. Its versatile application suits environments where permanent, high-quality marking or coding is demanded.
Q: What is involved in operating and maintaining this machine?
A: Operation is straightforward via the included EZCAD software and USB interface. The air-cooled system and maintenance-free design mean routine maintenance is minimal-mainly keeping the lens clean and ensuring the work environment stays within optimal conditions.
Q: How does this machine benefit productivity and workflow?
A: With its high engraving speed, extensive format compatibility, and easy set-up, this machine accelerates marking tasks, improves accuracy, and reduces operational downtime-boosting productivity and lowering costs in demanding industrial settings.
