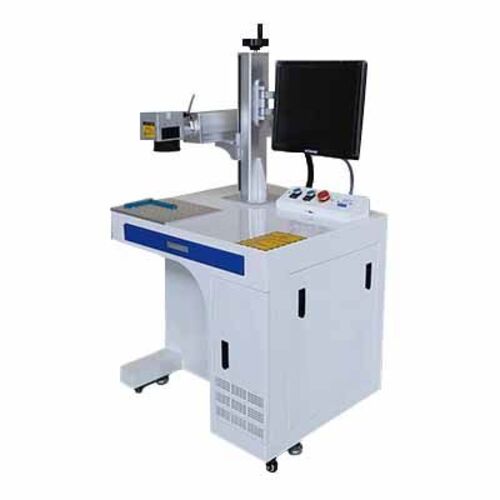

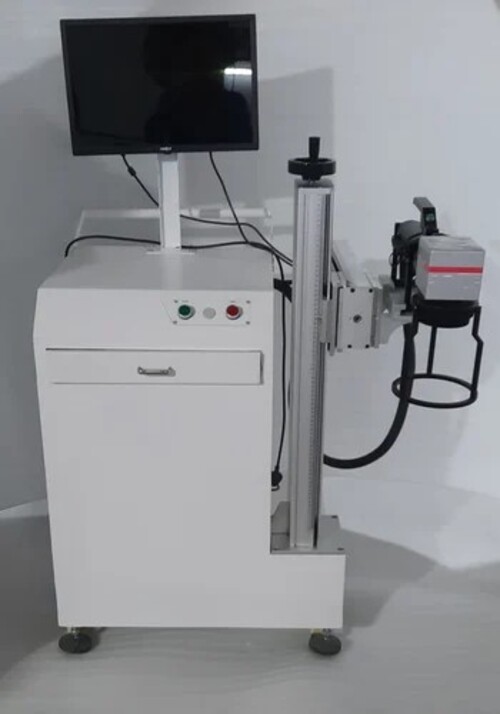

TECHNICAL DESCRIPTION FIBER LASER MARKING MACHINE
Overview
The Fiber Laser Marking Machine is a high-precision, non-contact marking system designed for permanent engraving on metallic and selected non-metallic materials. It utilizes advanced fiber laser technology to deliver high-speed, high-contrast, and maintenance-free marking solutions for industrial applications.
Working Principle
The system generates a high-energy laser beam through a fiber laser source, which is directed via a galvanometer scanning system onto the workpiece surface. The intense energy creates a permanent mark by oxidation, engraving, or ablation without causing mechanical stress.
Machine Configurations / Models

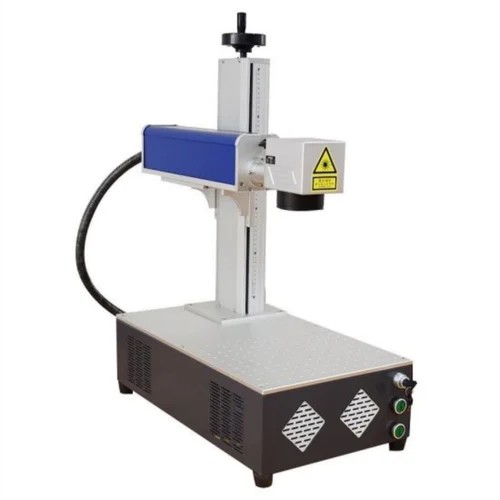

- Desktop Model Compact, stable, suitable for batch production
- Portable Model Lightweight, ideal for on-site marking

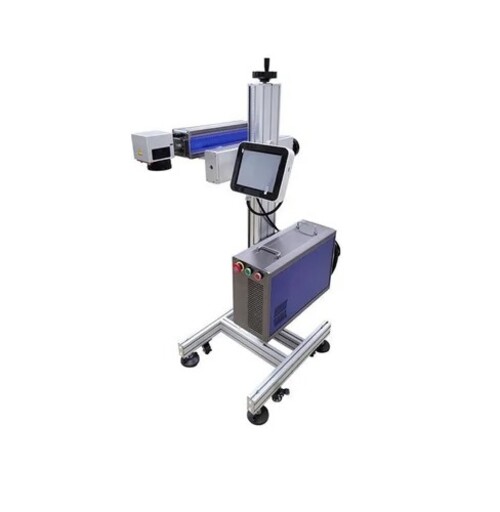

- Fly (Online) Model High-speed marking for continuous production lines
- Online Marking System Integrated with conveyor/automation systems

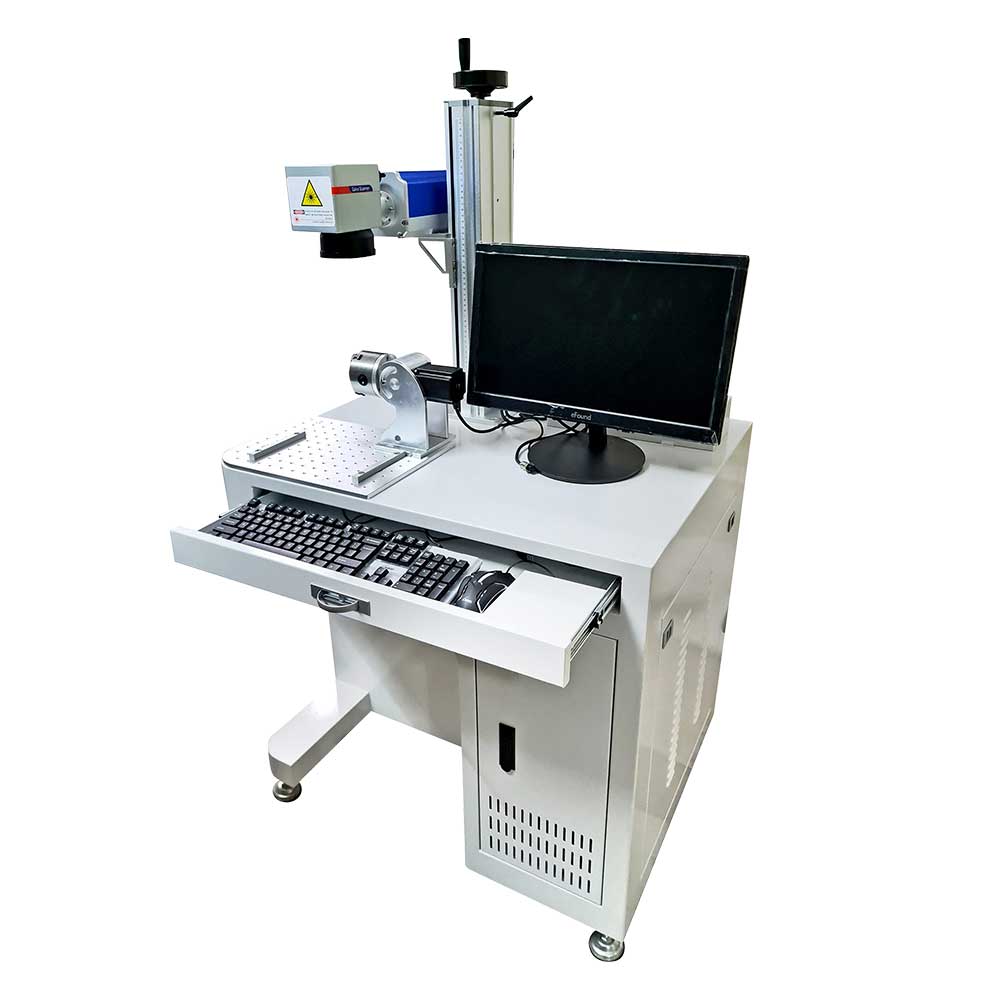

- CO Metal Tube Marking Machine Suitable for coated metals and non-metal materials
Main Components
- Fiber Laser Source (Raycus / JPT / IPG optional)
- Galvanometer Scanner (High-speed scanning head)
- Field Lens (F-theta lens for precise marking area)
- Control System (EZCAD software-based)
- Industrial Computer / Controller
- Laser Marking Software (Windows compatible)
- Work Table / Conveyor (as per model)
- Rotary Attachment (optional for cylindrical marking)
Technical Specifications
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Output Power |
20W / 30W / 50W / 100W |
| Wavelength |
1064 nm |
| Marking Area |
100100 mm to 300300 mm (optional) |
| Marking Speed |
Up to 7000 mm/s |
| Minimum Line Width |
0.01 mm |
| Repeat Accuracy |
0.001 mm |
| Cooling System |
Air Cooling |
| Power Supply |
220V / 50Hz |
| Power Consumption |
< 800 W |
| Supported Formats |
PLT, DXF, BMP, JPG, AI |
| Operating System |
Windows-based (EZCAD) |
Material Compatibility
Metals:
- Stainless Steel
- Mild Steel
- Aluminum
- Brass
- Copper
- Titanium
Non-Metals (Limited):
- ABS
- PVC
- Coated Materials
- Anodized Surfaces
Applications
- Serial Number Marking
- Barcode / QR Code Marking
- Logo Engraving
- Nameplate Marking
- Tool & Die Marking
- Automotive Parts Marking
- Electrical Components Marking

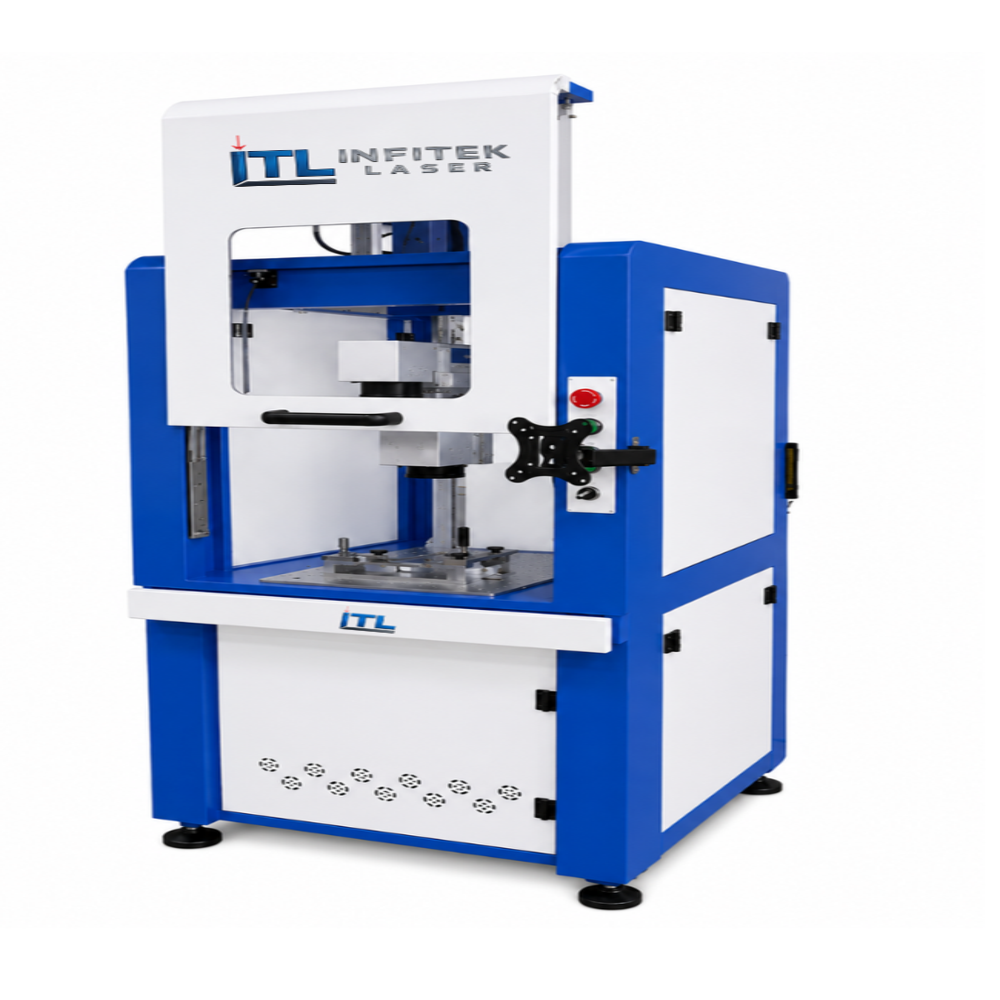

- Jewelry Engraving
Key Features
- High-Speed & High Precision Marking
- Permanent and Tamper-Proof Marking
- Maintenance-Free Operation
- Long Laser Life (>100,000 hours)
- Low Power Consumption
- No Consumables Required
- Compact and User-Friendly Design
- Suitable for Continuous Industrial Use
Safety Features
- Laser Safety Enclosure (optional)
- Emergency Stop Button
- Protective Laser Goggles
- Interlock Safety System
Advantages
- Non-contact process (no tool wear)
- Eco-friendly (no chemicals or inks)
- High reliability and low maintenance cost
- Suitable for automation and Industry 4.0 integration
Optional Accessories
- Rotary Device for cylindrical objects
- Conveyor System for online marking
- Fume Extractor
- Vision System (CCD Camera)
- Autofocus System

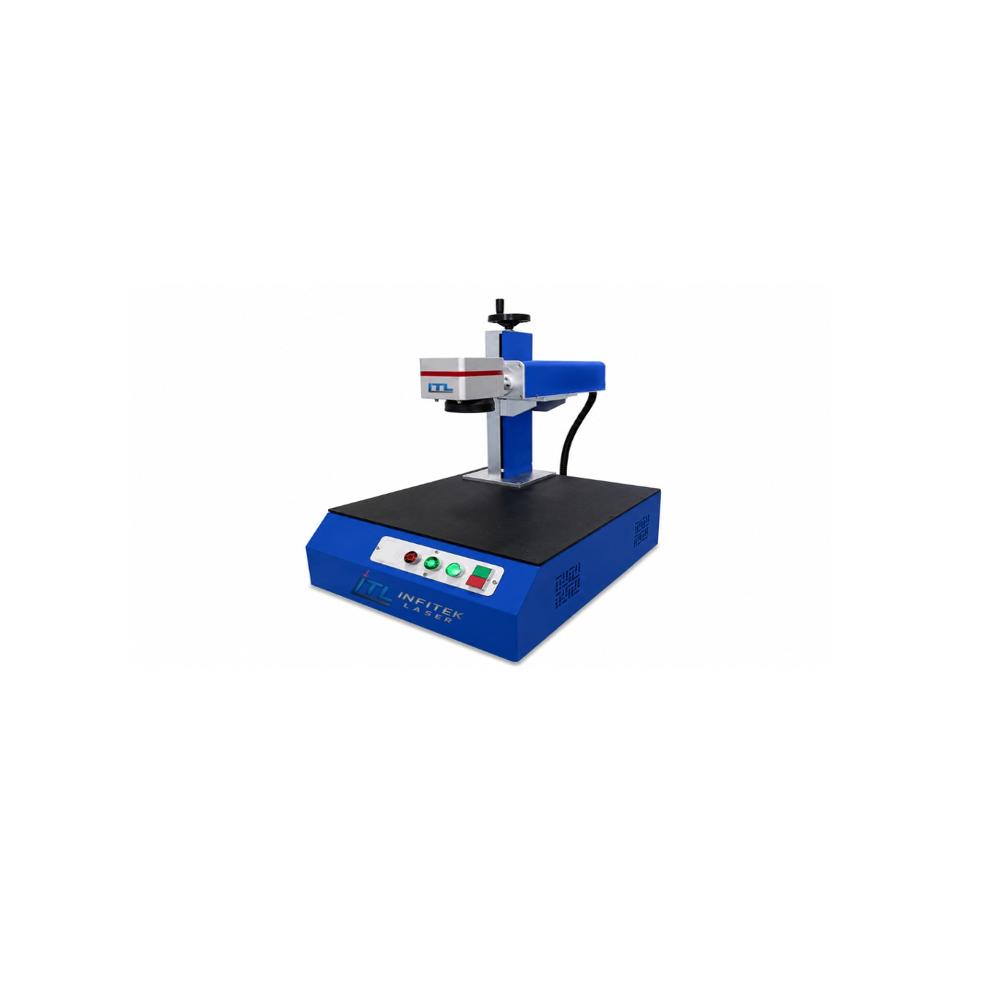

Precision and PerformanceEngineered for meticulous marking, this desktop fiber laser machine offers repeat positioning accuracy of 0.002 mm and supports intricate designs with line widths as fine as 0.01 mm. Its operation speed ensures high throughput for industrial workflows while maintaining mark quality on various metal components and tags.
Versatility in ApplicationWhether you need to engrave serial numbers, barcodes, graphics, or logos, the machine accommodates diverse industry requirements. The adjustable laser power and marking area provide flexibility for both small and large-scale tasks. Supported by EZCAD control software and a wide range of file types, integration is smooth and user-friendly.
Long-term ReliabilityBuilt with durability in mind, the fiber laser source boasts a service life exceeding 100,000 hours. Efficient air cooling ensures reliable operation within temperatures ranging from 0C to 40C. The compact design makes it suitable for any workspace, enabling easy installation and portability.

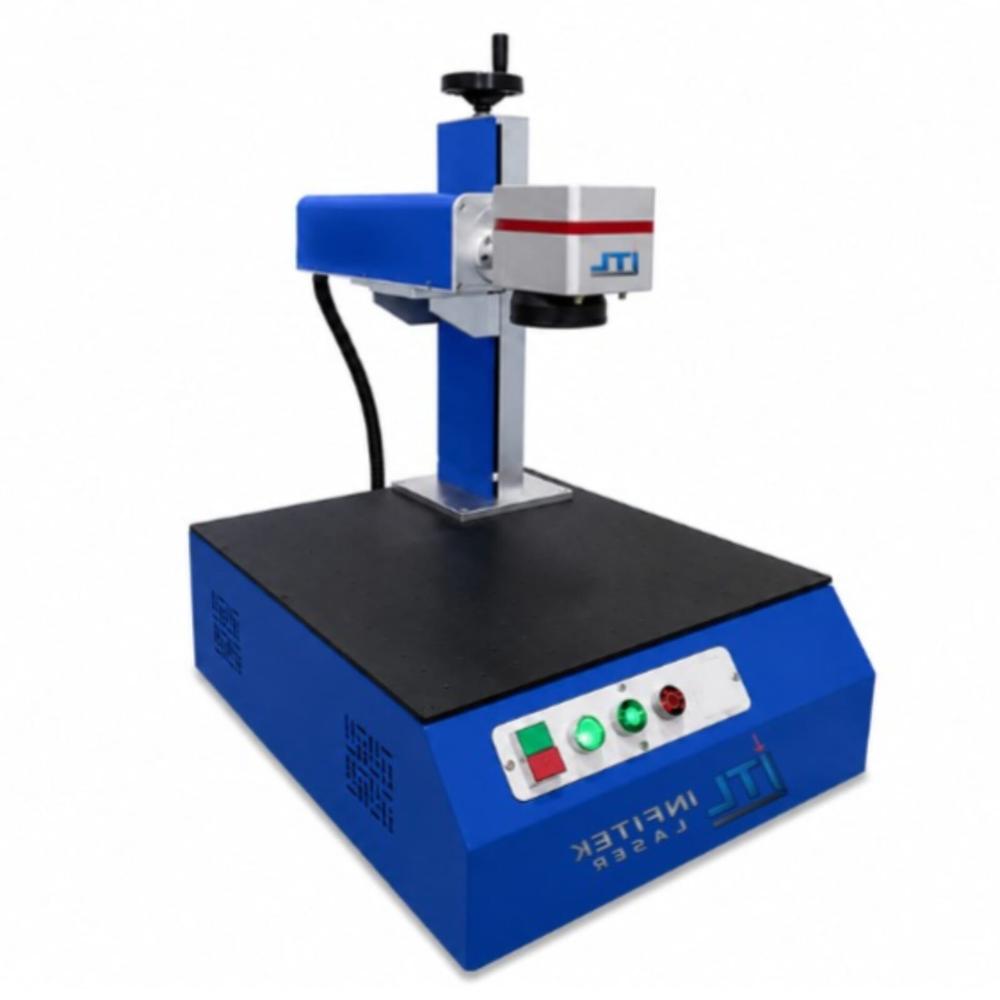

FAQ's of Desktop Fiber Laser Marking Machine:
Q: How does the Desktop Fiber Laser Marking Machine achieve such fine marking detail?
A: The machine utilizes advanced fiber laser technology in combination with high-precision optics, allowing for a minimum line width of 0.01 mm and a minimum character height of 0.2 mm. The precise control offered by the EZCAD system and repeat positioning accuracy of 0.002 mm results in remarkably detailed and consistent markings.
Q: What materials and applications are best suited for this laser marking machine?
A: This fiber laser marking machine is primarily designed for marking metals such as steel, aluminum, brass, and other alloys. It is ideal for marking serial numbers, barcodes, logos, and graphics on machine parts, tools, tags, and components used in manufacturing, exporting, and trading industries.
Q: Where can this laser marking machine be installed and how compact is it?
A: With its compact desktop size (approximately 700mm x 600mm x 800mm) and a net weight of around 40 kg, the machine fits easily in laboratory settings, workshops, production lines, or offices. Its air-cooled design eliminates the need for bulky external cooling systems, making it perfect for space-constrained environments.
Q: What benefits does air cooling provide compared to water cooling systems?
A: Air cooling simplifies machine maintenance and setup by eliminating the need for separate chillers or coolant management. It increases reliability and ensures stable performance in a broad operating temperature range (0C to 40C), which is particularly advantageous for small facilities and mobile applications.
Q: How does the marking process work with this equipment?
A: Using the included EZCAD software, users can import various graphics or text files (including AI, BMP, DXF, PLT, etc.), set the desired marking parameters, and operate the machine in either manual or automatic focus mode. The fiber laser then marks the desired information rapidly and accurately onto the chosen metal surface.
Q: When should I consider using different laser power options (20W, 30W, 50W)?
A: The optimal laser power depends on the application and material thickness. Lower powers (20W) are suitable for light engraving and high-speed marking on thin metals, while higher powers (30W, 50W) are recommended for deeper marking or processing harder materials, ensuring efficiency and marking depth as required.
Q: What is the expected lifespan of the laser source and what maintenance does it require?
A: The fiber laser source is rated for more than 100,000 hours of service life, providing long-term operation with minimal maintenance. Routine care involves ensuring the air cooling system remains unobstructed and keeping the optics clean, ensuring consistent performance over years of use.
