TECHNICAL DESCRIPTION FIBER LASER MARKING MACHINE
Overview
The Fiber Laser Marking Machine is a high-precision, non-contact marking system designed for permanent engraving on metallic and selected non-metallic materials. It utilizes advanced fiber laser technology to deliver high-speed, high-contrast, and maintenance-free marking solutions for industrial applications.
Working Principle
The system generates a high-energy laser beam through a fiber laser source, which is directed via a galvanometer scanning system onto the workpiece surface. The intense energy creates a permanent mark by oxidation, engraving, or ablation without causing mechanical stress.
Machine Configurations / Models
- Desktop Model Compact, stable, suitable for batch production
- Portable Model Lightweight, ideal for on-site marking
- Fly (Online) Model High-speed marking for continuous production lines

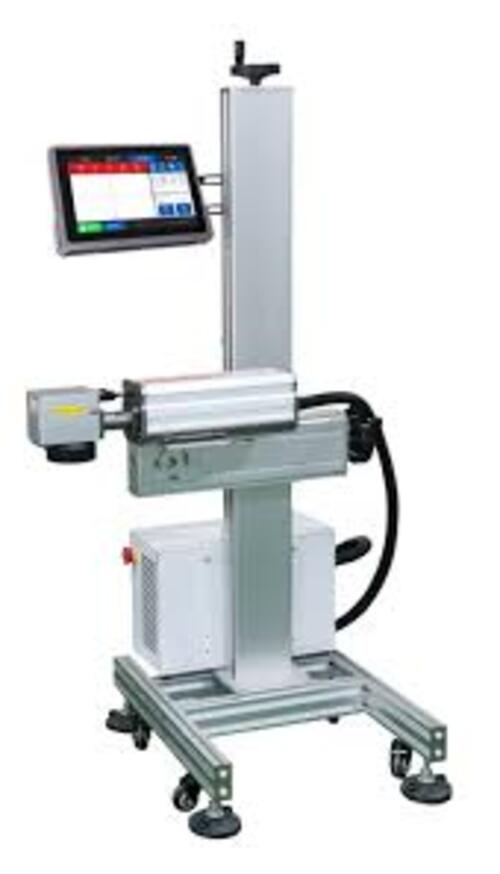

- Online Marking System Integrated with conveyor/automation systems
- CO Metal Tube Marking Machine Suitable for coated metals and non-metal materials
Main Components
- Fiber Laser Source (Raycus / JPT / IPG optional)
- Galvanometer Scanner (High-speed scanning head)
- Field Lens (F-theta lens for precise marking area)
- Control System (EZCAD software-based)
- Industrial Computer / Controller
- Laser Marking Software (Windows compatible)
- Work Table / Conveyor (as per model)
- Rotary Attachment (optional for cylindrical marking)
Technical Specifications
Material Compatibility Metals:
Non-Metals (Limited):
Applications
- Barcode / QR Code Marking
- Electrical Components Marking
Key Features
- High-Speed & High Precision Marking
- Permanent and Tamper-Proof Marking
- Maintenance-Free Operation
- Long Laser Life (>100,000 hours)
- Compact and User-Friendly Design
- Suitable for Continuous Industrial Use
Safety Features
- Laser Safety Enclosure (optional)
Advantages
- Non-contact process (no tool wear)
- Eco-friendly (no chemicals or inks)
- High reliability and low maintenance cost
- Suitable for automation and Industry 4.0 integration
Optional Accessories
- Rotary Device for cylindrical objects
- Conveyor System for online marking
- Vision System (CCD Camera)
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Output Power |
20W / 30W / 50W / 100W |
| Wavelength |
1064 nm |
| Marking Area |
100100 mm to 300300 mm (optional) |
| Marking Speed |
Up to 7000 mm/s |
| Minimum Line Width |
0.01 mm |
| Repeat Accuracy |
0.001 mm |
| Cooling System |
Air Cooling |
| Power Supply |
220V / 50Hz |
| Power Consumption |
< 800 W |
| Supported Formats |
PLT, DXF, BMP, JPG, AI |
| Operating System |
Windows-based (EZCAD) |
Precision Marking Meets Industrial DemandsEngineered for accurate marking, the CO2 Laser Metal Tube Marking Machine combines high-speed performance with fine resolution, ensuring repeatable results on a broad range of metal tubes. Its robust construction and advanced cooling make it reliable even during extended work sessions.
Flexible for Varied ApplicationsWith customizable marking areas and power output, this machine can easily adapt to different metal marking requirements. Whether standard or custom sizes, the system is ready to meet diverse production needs, supporting a variety of file formats for easy workflow integration.
FAQ's of CO2 Laser Metal Tube Marking Machine:
Q: How does the CO2 Laser Metal Tube Marking Machine operate?
A: The machine uses a focused CO2 gas laser beam, directed through a DSP or PC-based controller, to engrave or mark designs onto metal tubes. Its marking process is controlled precisely, offering high speed (up to 7000 mm/s) and fine resolution, with either manual or optional auto-focusing capabilities.
Q: What types of metals and file formats are supported by the machine?
A: It is designed for marking and engraving on various types of metal pipes and tubes. Supported design file formats include AI, PLT, DXF, BMP, JPG, TIF, and others, making it compatible with most graphic design software.
Q: When should I consider using this machine for my operations?
A: This laser marking machine is ideal for industrial applications where high accuracy, speed, and repeatability are required, such as serial number marking, logo engraving, or traceability on metal components in manufacturing or export businesses.
Q: Where can the CO2 Laser Metal Tube Marking Machine be installed?
A: It is suited for industrial settings, workshops, or manufacturing plants in environments with temperatures ranging from 0 to 45C and humidity up to 80%. Its standard and customizable size options offer flexibility in placement.
Q: What is the marking process and speed of this laser machine?
A: The process involves uploading a compatible design file, setting marking parameters, focusing the laser (manually or automatically), and initiating the marking cycle. The machine can achieve marking speeds up to 7000 mm/s, with a depth capability of up to 0.3 mm, depending on the material.
Q: How is the machine cooled during operation?
A: The CO2 Laser Metal Tube Marking Machine uses a dedicated water cooling system to maintain optimal laser tube performance and extend lifespan (estimated at 8000 to 10000 hours).
Q: What are the key benefits of using this machine?
A: Key advantages include precise, permanent marking with minimal maintenance, compatibility with various file types, high-speed operation, and long laser tube lifespan. It enhances productivity and quality assurance for industrial marking tasks.
